• Mitsubishi RD77GF16 iQ-R Series Simple Motion Module

Product Description

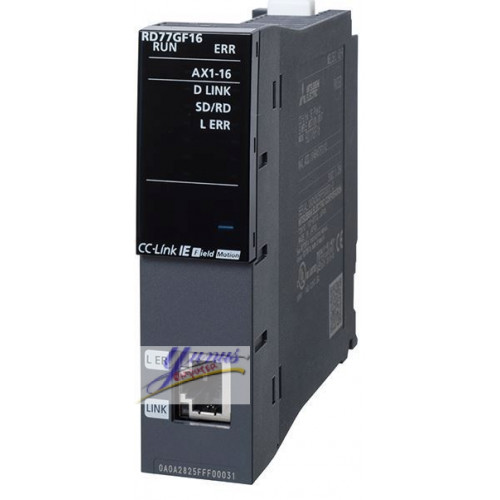

Mitsubishi RD77GF16 iQ-R Series Simple Motion Module

The Mitsubishi RD77GF16 iQ-R Series Simple Motion Module represents a cutting-edge solution for motion control applications in complex automation systems. Engineered with advanced technology and precision, this module is designed to enhance the performance and flexibility of your automation processes.

Key Features:

  • High-Speed Motion Control: The RD77GF16 provides high-speed motion control capabilities, allowing for rapid and accurate positioning. It supports up to 16 axes of motion control, ensuring that even the most demanding applications are handled with ease.

  • Versatile Motion Profiles: With a range of motion profiles, including point-to-point, linear interpolation, and circular interpolation, this module offers exceptional versatility for diverse automation tasks.

  • Integrated Position Feedback: Equipped with integrated position feedback systems, the RD77GF16 ensures precise and reliable motion control, minimizing errors and optimizing performance.

  • User-Friendly Configuration: The module features a user-friendly configuration interface that simplifies setup and programming, reducing the time required for system integration.

  • Robust Communication Protocols: Supporting multiple communication protocols, including EtherCAT, the RD77GF16 integrates seamlessly with other automation components, facilitating efficient data exchange and system coordination.

  • Compact and Durable Design: The compact design of the RD77GF16 module allows for easy installation in space-constrained environments, while its rugged construction ensures long-term reliability in demanding industrial conditions.

  • Enhanced Safety Features: Built with safety in mind, the RD77GF16 includes comprehensive safety features to protect both the module and the machinery it controls, ensuring safe operation in all conditions.

Applications:

  • Automated machinery
  • Robotics
  • Packaging systems
  • Material handling
  • CNC machines

Elevate your automation capabilities with the Mitsubishi RD77GF16 iQ-R Series Simple Motion Module, a high-performance solution designed to meet the needs of modern industrial applications.

Mitsubishi RD77GF16 iQ-R Series Simple Motion Module for CC-Link IE Field Network; 16 Axis

  MOTION CONTROL CPU
Type IQ-R SERIES
Number of Axes 16
Program Capacity 600
Program Capacity Unit POSITIONING DATA / AXIS
Inputs 16
Servo Amplifier Interface SSCNET III/H
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 27,8
Height (mm) 106
Depth (mm) 110
Weight (kg) 0,23
ORDER CODES
European Order Code 295079
Global Order Code 1SH204
CLASSIFICATION DATA
Product hierarchy IAK30621
Class Description FA-Servo-Motion: Motion Control CPU
External Material Group Standard Material
AVAILABILITY
Logistic Class B
PACKAGING DIMENSIONS & WEIGHT
Gross Weight 0.28  KG
Volume 1.2  CDM
Length 16 CM
Width 15 CM
Height 5 CM
COMMODITY / IMPORT CODE
Commodity Code 85371091
Country of Origin JP
CAMPAIGNS
Selling Status Standard
ENVIRONMENTAL

REACH Limit Exceeded NO
Dangerous Goods Regulations NO

Mitsubishi RD77GF16 iQ-R Series Simple Motion Module

  • Brand: Mitsubishi
  • Product Code: RD77GF16
  • Availability: 1000

Tags: Mitsubishi, RD77GF16, iQ-R Series, Simple Motion Module, motion control, high-speed motion, automation, EtherCAT, industrial automation
