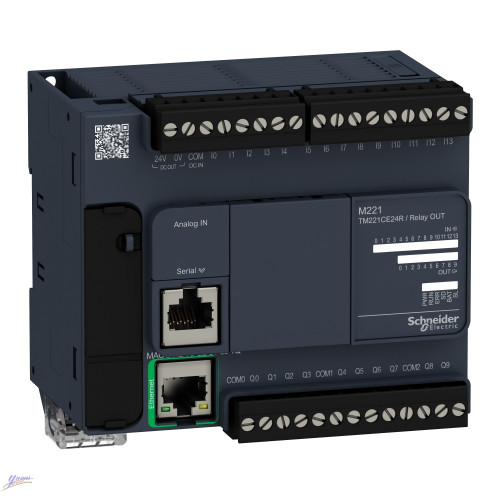

Schneider TM221CE24R Controller M221 – 24 I/O Relay, Ethernet Connectivity
Overview
The Schneider TM221CE24R Controller M221 is an advanced and highly reliable solution designed to meet the complex demands of modern automation systems. This compact and powerful controller is engineered to provide exceptional performance and flexibility in a wide range of industrial applications. With 24 I/O points, relay outputs, and integrated Ethernet connectivity, the TM221CE24R is ideal for managing diverse control tasks while ensuring seamless integration with your existing network infrastructure.
Key Features
24 I/O Points: The TM221CE24R features 24 versatile I/O points, including 12 digital inputs and 12 relay outputs. This configuration provides the flexibility needed to handle a variety of control and monitoring tasks, making it suitable for both simple and complex applications.
Relay Outputs: Equipped with relay outputs, the controller offers robust switching capabilities for AC and DC loads. These relays ensure reliable operation and longevity, even in demanding environments.
Ethernet Connectivity: The integrated Ethernet port allows for efficient communication and networking, enabling real-time data exchange and remote monitoring. This connectivity simplifies integration with other devices and systems, enhancing the overall efficiency of your automation processes.
Compact Design: The TM221CE24R’s compact form factor ensures that it fits seamlessly into space-constrained environments. Its design allows for easy installation and integration, without compromising on functionality or performance.
Enhanced Performance: The controller’s advanced processing power ensures fast and accurate execution of control commands. This capability supports high-speed applications and complex control algorithms, delivering reliable performance in demanding industrial settings.
User-Friendly Programming: The Schneider TM221CE24R supports user-friendly programming tools, facilitating straightforward configuration and deployment. Its intuitive programming environment helps streamline development and reduces the time required to bring your automation system online.
Robust Build Quality: Designed to withstand harsh industrial environments, the TM221CE24R is built with high-quality materials and rigorous testing standards. Its durability ensures long-term reliability and minimal maintenance requirements.
Applications
The Schneider TM221CE24R Controller M221 is suitable for a wide range of industrial and automation applications, including:
- Manufacturing Automation: Ideal for controlling machinery, conveyors, and production lines.
- Building Management Systems: Effective for managing HVAC systems, lighting controls, and security systems.
- Process Control: Suitable for monitoring and controlling various industrial processes and systems.
- Machine Control: Provides precise control for complex machine operations and sequences.
Benefits
- Increased Efficiency: Streamline automation processes and improve operational efficiency with real-time data exchange and advanced control capabilities.
- Flexibility: Adapt to various control tasks with a versatile I/O configuration and relay outputs.
- Ease of Integration: Simplify system integration with Ethernet connectivity and user-friendly programming tools.
- Reliability: Ensure consistent performance and durability in challenging industrial environments.
Technical Specifications
- Model: Schneider TM221CE24R
- Type: M221 Controller
- I/O Configuration: 12 Digital Inputs, 12 Relay Outputs
- Connectivity: Ethernet
- Dimensions: Compact and space-efficient
- Operating Temperature: [Specify temperature range]
- Compliance: [Specify relevant standards and certifications]
Conclusion
The Schneider TM221CE24R Controller M221 offers a robust, flexible, and highly efficient solution for industrial automation. Its comprehensive feature set, including 24 I/O points, relay outputs, and Ethernet connectivity, makes it an excellent choice for a wide range of applications. Enhance your automation processes with the reliability and performance of the TM221CE24R.
| range of product |
Modicon M221
|
|
|---|---|---|
| product or component type |
Logic controller
|
|
| [Us] rated supply voltage |
100...240 V AC
|
|
| discrete input number |
14 discrete input conforming to IEC 61131-2 Type 1
|
|
| analogue input number |
2 at input range: 0...10 V
|
|
| discrete output type |
Relay normally open
|
|
| discrete output number |
10 relay
|
|
| discrete output voltage |
5...125 V DC
5...250 V AC |
|
| discrete output current |
2 A
|
| discrete I/O number |
24
|
|
|---|---|---|
| number of I/O expansion module |
<= 7 for transistor output
<= 7 for relay output |
|
| supply voltage limits |
85...264 V
|
|
| network frequency |
50/60 Hz
|
|
| inrush current |
<= 40 A
|
|
| power consumption in VA |
<= 58 VA at 100...240 V with max number of I/O expansion module
<= 35 VA at 100...240 V without I/O expansion module |
|
| power supply output current |
0.52 A at 5 V for expansion bus
0.16 A at 24 V for expansion bus |
|
| discrete input logic |
Sink or source (positive/negative)
|
|
| discrete input voltage |
24 V
|
|
| discrete input voltage type |
DC
|
|
| analogue input resolution |
10 bits
|
|
| LSB value |
10 mV
|
|
| conversion time |
1 ms per channel + 1 controller cycle time for analog input
|
|
| permitted overload on inputs |
+/- 30 V DC for analog input with 5 min maximum
+/- 13 V DC for analog input permanent |
|
| voltage state 1 guaranteed |
>= 15 V for input
|
|
| voltage state 0 guaranteed |
<= 5 V for input
|
|
| discrete input current |
7 mA for discrete input
5 mA for fast input |
|
| input impedance |
4.9 kOhm for fast input
3.4 kOhm for discrete input 100 kOhm for analog input |
|
| response time |
10 ms turn-on operation for output
35 µs turn-off operation for input; I2...I5 terminal 10 ms turn-off operation for output 5 µs turn-on operation for fast input; I0, I1, I6, I7 terminal 35 µs turn-on operation for input; other terminals terminal 5 µs turn-off operation for fast input; I0, I1, I6, I7 terminal 100 µs turn-off operation for input; other terminals terminal |
|
| configurable filtering time |
0 ms for input
12 ms for input 3 ms for input |
|
| output voltage limits |
125 V DC
277 V AC |
|
| current per output common |
4 A at COM 2 termnal
7 A at COM 0 termnal 7 A at COM 1 termnal |
|
| absolute accuracy error |
+/- 1 % of full scale for analog input
|
|
| electrical durability |
Inductive AC-15, (cos phi = 0.35) 240 V / 120 VA : 100000 cycles
Resistive DC-12, 24 V / 48 W : 100000 cycles Resistive AC-12, 120 V / 240 VA : 100000 cycles Inductive AC-15, (cos phi = 0.35) 240 V / 36 VA : 300000 cycles Resistive AC-12, 120 V / 80 VA : 300000 cycles Inductive (L/R = 7 ms) DC-13, 24 V / 24 W : 100000 cycles Resistive DC-12, 24 V / 16 W : 300000 cycles Inductive (L/R = 7 ms) DC-13, 24 V / 7.2 W : 300000 cycles Inductive AC-14, (cos phi = 0.7) 240 V / 240 VA : 100000 cycles Inductive AC-15, (cos phi = 0.35) 120 V / 60 VA : 100000 cycles Inductive AC-14, (cos phi = 0.7) 240 V / 72 VA : 300000 cycles Inductive AC-15, (cos phi = 0.35) 120 V / 18 VA : 300000 cycles Resistive AC-12, 240 V / 480 VA : 100000 cycles Inductive AC-14, (cos phi = 0.7) 120 V / 120 VA : 100000 cycles Resistive AC-12, 240 V / 160 VA : 300000 cycles Inductive AC-14, (cos phi = 0.7) 120 V / 36 VA : 300000 cycles |
|
| switching frequency |
20 switching operations/minute with maximum load
|
|
| mechanical durability |
>= 20000000 cycles for relay output
|
|
| minimum load |
1 mA at 5 V DC for relay output
|
|
| protection type |
Without protection at 5 A
|
|
| reset time |
1 s
|
|
| memory capacity |
256 kB for user application and data RAM with 10000 instructions
256 kB for internal variables RAM |
|
| data backed up |
256 kB built-in flash memory for backup of application and data
|
|
| data storage equipment |
2 GB SD card optional
|
|
| battery type |
BR2032 lithium non-rechargeable, battery life: 4 yr
|
|
| backup time |
1 year at 25 °C by interruption of power supply
|
|
| execution time for 1 KInstruction |
0.3 ms for event and periodic task
|
|
| execution time per instruction |
0.2 µs Boolean
|
|
| exct time for event task |
60 µs response time
|
|
| maximum size of object areas |
8000 %MW memory words
255 %TM timers 512 %M memory bits 512 %KW constant words 255 %C counters |
|
| realtime clock |
With
|
|
| clock drift |
<= 30 s/month at 25 °C
|
|
| regulation loop |
Adjustable PID regulator up to 14 simultaneous loops
|
|
| counting input number |
4 fast input (HSC mode) (counting frequency: 100 kHz), counting
capacity: 32 bits
|
|
| counter function |
A/B
Single phase Pulse/direction |
|
| integrated connection type |
USB port with connector mini B USB 2.0
Ethernet with connector RJ45 Non isolated serial link "serial 1" with connector RJ45 and interface RS232/RS485 |
|
| supply |
Serial serial link supply at 5 V 200 mA
|
|
| transmission rate |
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of
15 m - communication protocol: RS485
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m - communication protocol: RS232 480 Mbit/s - communication protocol: USB |
|
| communication port protocol |
USB port : USB protocol - SoMachine-Network
Non isolated serial link : Modbus protocol master/slave - RTU/ASCII or SoMachine-Network : Ethernet protocol |
|
| port Ethernet |
10BASE-T/100BASE-TX 1 port with 100 m copper cable
|
|
| communication service |
Modbus TCP client
Ethernet/IP adapter Modbus TCP server Modbus TCP slave device DHCP client |
|
| local signalling |
1 LED green for SD card access (SD)
1 LED red for BAT 1 LED per channel green for I/O state 1 LED green for SL Ethernet network activity green for ACT Ethernet network link yellow for Link (Link Status) 1 LED red for module error (ERR) 1 LED green for PWR 1 LED green for RUN |
|
| electrical connection |
Mini B USB 2.0 connector for a programming terminal
Terminal block, 3 terminal(s) for connecting the 24 V DC power supply Connector, 4 terminal(s) for analogue inputs Removable screw terminal block for inputs Removable screw terminal block for outputs |
|
| cable distance between devices |
Shielded cable: 10 m for fast input
Unshielded cable: 30 m for output Unshielded cable: 30 m for digital input Unshielded cable: 1 m for analog input |
|
| insulation |
2300 V AC between output and internal logic
Non-insulated between analogue inputs 500 V AC between input and internal logic Non-insulated between analogue input and internal logic 1500 V AC between supply and ground 500 V AC between sensor power supply and ground 500 V AC between input and ground 1500 V AC between output and ground 2300 V AC between supply and internal logic 500 V AC between sensor power supply and internal logic 500 V AC between Ethernet terminal and internal logic 2300 V AC between supply and sensor power supply |
|
| marking |
CE
|
|
| sensor power supply |
24 V DC at 250 mA supplied by the controller
|
|
| mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715 Plate or panel with fixing kit |
|
| height |
90 mm
|
|
| depth |
70 mm
|
|
| width |
110 mm
|
|
| product weight |
0.395 kg
|
| standards |
EN/IEC 61131-2
EN/IEC 61010-2-201 EN/IEC 60664-1 |
|
|---|---|---|
| product certifications |
cULus
LR EAC DNV-GL ABS RCM CSA IACS E10 |
Schneider TM221CE24R M221 Controller – 24 I/O, Relay, Ethernet
- Brand: Schneider
- Product Code: TM221CE24R
- Availability: 1000
Tags: Schneider, TM221CE24R, M221, Controller, 24 I/O, Relay, Ethernet, Industrial Automation, PLC, Programmable Logic Controller
