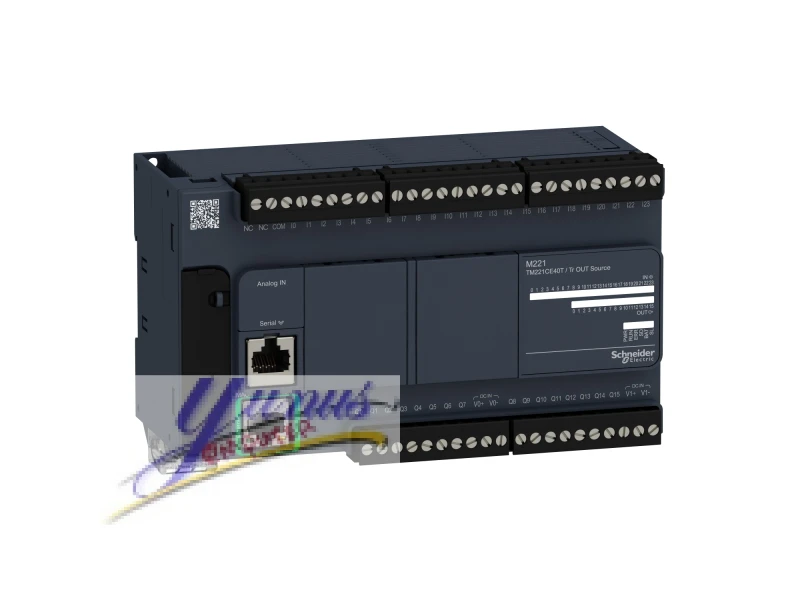

Schneider TM221CE40T Controller M221 – Advanced 40 IO Transistor PNP with Ethernet Connectivity
Elevate your automation capabilities with the Schneider TM221CE40T Controller M221, a high-performance, versatile controller engineered for precision and efficiency in industrial automation. This state-of-the-art controller is designed to deliver exceptional control and monitoring across a variety of applications, thanks to its robust features and advanced technology.
Key Features:
40 IO Transistor PNP Configuration: The TM221CE40T boasts 40 digital inputs/outputs with a transistor PNP configuration, ensuring reliable and efficient signal processing. This configuration is ideal for high-speed operations and provides optimal performance in demanding automation environments.
Integrated Ethernet Port: Featuring a built-in Ethernet port, the TM221CE40T enables seamless network integration and communication. This connectivity option supports high-speed data transfer and facilitates remote access, monitoring, and control, making it an ideal choice for modern industrial setups.
Compact and Efficient Design: With its compact form factor, the TM221CE40T is designed to fit into space-constrained panels without compromising on performance. Its efficient design helps to streamline installations and reduce overall system footprint.
Enhanced Programming Capabilities: The controller supports Schneider Electric's comprehensive programming environment, allowing for flexible and intuitive programming. This feature enhances user productivity and simplifies the development of complex automation tasks.
Robust and Reliable Operation: Built to withstand harsh industrial conditions, the TM221CE40T ensures reliable operation even in challenging environments. Its rugged design and high-quality components guarantee long-term durability and minimal maintenance.
Scalable and Modular: The M221 series offers scalability and modularity, allowing you to expand your system as your needs grow. This flexibility makes the TM221CE40T a future-proof solution for evolving automation requirements.
Applications:
- Manufacturing Automation: Perfect for controlling machinery, process automation, and production lines with precision and reliability.
- Building Management Systems: Ideal for managing and monitoring HVAC systems, lighting controls, and other building systems.
- Infrastructure Projects: Suitable for use in infrastructure applications requiring robust and scalable automation solutions.
Specifications:
- Model: TM221CE40T
- Type: Programmable Logic Controller (PLC)
- IO Configuration: 40 IO Transistor PNP
- Connectivity: Integrated Ethernet Port
- Dimensions: [Insert Dimensions]
- Power Supply: [Insert Power Supply Specifications]
Why Choose Schneider TM221CE40T?
The Schneider TM221CE40T Controller M221 is a premier choice for professionals seeking a high-quality, reliable, and versatile automation solution. Its advanced features, including a large number of IO points and Ethernet connectivity, make it an excellent fit for complex and demanding applications.
Upgrade your automation systems with the Schneider TM221CE40T and experience unparalleled control, efficiency, and flexibility. For more information or to request a quote, contact us today!
| range of product |
Modicon M221
|
|
|---|---|---|
| product or component type |
Logic controller
|
|
| [Us] rated supply voltage |
24 V DC
|
|
| discrete input number |
24 discrete input conforming to IEC 61131-2 Type 1 including 4
fast input
|
|
| analogue input number |
2 at input range: 0...10 V
|
|
| discrete output type |
Transistor
|
|
| discrete output number |
16 transistor including 2 fast output
|
|
| discrete output voltage |
24 V DC
|
|
| discrete output current |
0.5 A
|
| discrete I/O number |
40
|
|
|---|---|---|
| number of I/O expansion module |
<= 7 for relay output
|
|
| supply voltage limits |
20.4...28.8 V
|
|
| inrush current |
<= 35 A
|
|
| power consumption in W |
<= 17 W at 24 V with max number of I/O expansion module
<= 4.9 W at 24 V without I/O expansion module |
|
| power supply output current |
0.52 A at 5 V for expansion bus
0.3 A at 24 V for expansion bus |
|
| discrete input logic |
Sink or source (positive/negative)
|
|
| discrete input voltage |
24 V
|
|
| discrete input voltage type |
DC
|
|
| analogue input resolution |
10 bits
|
|
| LSB value |
10 mV
|
|
| conversion time |
1 ms per channel + 1 controller cycle time for analog input
|
|
| permitted overload on inputs |
+/- 30 V DC for analog input with 5 min maximum
+/- 13 V DC for analog input permanent |
|
| voltage state 1 guaranteed |
>= 15 V for input
|
|
| voltage state 0 guaranteed |
<= 5 V for input
|
|
| discrete input current |
7 mA for discrete input
5 mA for fast input |
|
| input impedance |
4.9 kOhm for fast input
3.4 kOhm for discrete input 100 kOhm for analog input |
|
| response time |
35 µs turn-off operation for input; I2...I5 terminal
5 µs turn-on operation for fast input; I0, I1, I6, I7 terminal 35 µs turn-on operation for input; other terminals terminal 5 µs turn-off operation for fast input; I0, I1, I6, I7 terminal 100 µs turn-off operation for input; other terminals terminal 5 µs turn-on, turn-off operation for output; Q0...Q1 terminal 50 µs turn-on, turn-off operation for output; Q2...Q3 terminal 300 µs turn-on, turn-off operation for output; other terminals terminal |
|
| configurable filtering time |
0 ms for input
12 ms for input 3 ms for input |
|
| discrete output logic |
Positive logic (source)
|
|
| current per output common |
4 A
|
|
| output frequency |
100 kHz for fast output (PWM/PLS mode) at Q0...Q1 termnal
5 kHz for output at Q2...Q3 termnal 0.1 kHz for output at Q4...Q15 termnal |
|
| absolute accuracy error |
+/- 1 % of full scale for analog input
|
|
| leakage current |
0.1 mA for transistor output
|
|
| voltage drop |
<= 1 V
|
|
| mechanical durability |
>= 20000000 cycles for transistor output
|
|
| tungsten load |
<= 12 W for output and fast output
|
|
| protection type |
Overload and short-circuit protection at 1 A
|
|
| reset time |
1 s automatic reset
|
|
| memory capacity |
256 kB for user application and data RAM with 10000 instructions
256 kB for internal variables RAM |
|
| data backed up |
256 kB built-in flash memory for backup of application and data
|
|
| data storage equipment |
2 GB SD card optional
|
|
| battery type |
BR2032 lithium non-rechargeable, battery life: 4 yr
|
|
| backup time |
1 year at 25 °C by interruption of power supply
|
|
| execution time for 1 KInstruction |
0.3 ms for event and periodic task
|
|
| execution time per instruction |
0.2 µs Boolean
|
|
| exct time for event task |
60 µs response time
|
|
| maximum size of object areas |
8000 %MW memory words
512 %M memory bits 255 %TM timers 255 %C counters 512 %KW constant words |
|
| realtime clock |
With
|
|
| clock drift |
<= 30 s/month at 25 °C
|
|
| regulation loop |
Adjustable PID regulator up to 14 simultaneous loops
|
|
| positioning functions |
Position PTO 2 axe(s) pulse/direction mode (100 kHz)
Position PTO 1 axe(s) CW/CCW mode (100 kHz) |
|
| function available |
PLS
PWM Frequency generator |
|
| counting input number |
4 fast input (HSC mode) (counting frequency: 100 kHz), counting
capacity: 32 bits
|
|
| counter function |
Pulse/direction
Single phase A/B |
|
| integrated connection type |
USB port with connector mini B USB 2.0
Ethernet with connector RJ45 Non isolated serial link "serial 1" with connector RJ45 and interface RS232/RS485 |
|
| supply |
Serial serial link supply at 5 V 200 mA
|
|
| transmission rate |
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of
15 m - communication protocol: RS485
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m - communication protocol: RS232 480 Mbit/s - communication protocol: USB |
|
| communication port protocol |
USB port : USB protocol - SoMachine-Network
Non isolated serial link : Modbus protocol master/slave - RTU/ASCII or SoMachine-Network : Ethernet protocol |
|
| port Ethernet |
10BASE-T/100BASE-TX 1 port with 100 m copper cable
|
|
| communication service |
Modbus TCP slave device
Ethernet/IP adapter Modbus TCP client DHCP client Modbus TCP server |
|
| local signalling |
1 LED green for SD card access (SD)
1 LED red for BAT 1 LED per channel green for I/O state 1 LED green for SL Ethernet network activity green for ACT Ethernet network link yellow for Link (Link Status) 1 LED red for module error (ERR) 1 LED green for PWR 1 LED green for RUN |
|
| electrical connection |
Mini B USB 2.0 connector for a programming terminal
Terminal block, 3 terminal(s) for connecting the 24 V DC power supply Connector, 4 terminal(s) for analogue inputs Removable screw terminal block for inputs Removable screw terminal block for outputs |
|
| cable distance between devices |
Shielded cable: 10 m for fast input
Unshielded cable: 30 m for output Unshielded cable: 30 m for digital input Unshielded cable: 1 m for analog input Shielded cable: 3 m for fast output |
|
| insulation |
500 V AC between fast input and internal logic
Non-insulated between inputs Non-insulated between analogue inputs 500 V AC between output and internal logic 500 V AC between input and internal logic Non-insulated between analogue input and internal logic |
|
| marking |
CE
|
|
| mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715 Plate or panel with fixing kit |
|
| height |
90 mm
|
|
| depth |
70 mm
|
|
| width |
160 mm
|
|
| product weight |
0.456 kg
|
| standards |
EN/IEC 61131-2
EN/IEC 60664-1 EN/IEC 61010-2-201 |
|
|---|---|---|
| product certifications |
IACS E10
cULus CSA RCM LR EAC ABS DNV-GL |
|
| environmental characteristic |
Ordinary and hazardous location
|
|
| resistance to electrostatic discharge |
4 kV on contact conforming to EN/IEC 61000-4-2
8 kV in air conforming to EN/IEC 61000-4-2 |
|
| resistance to electromagnetic fields |
10 V/m ( 80 MHz...1 GHz) conforming to EN/IEC 61000-4-3
3 V/m ( 1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3 1 V/m ( 2...2.7 GHz) conforming to EN/IEC 61000-4-3 |
|
| resistance to magnetic fields |
30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
|
|
| resistance to fast transients |
2 kV for power lines conforming to EN/IEC 61000-4-4
2 kV for relay output conforming to EN/IEC 61000-4-4 1 kV for Ethernet line conforming to EN/IEC 61000-4-4 1 kV for serial link conforming to EN/IEC 61000-4-4 1 kV for I/O conforming to EN/IEC 61000-4-4 |
|
| surge withstand |
2 kV for power lines (AC) in common mode conforming to EN/IEC
61000-4-5
2 kV for relay output in common mode conforming to EN/IEC 61000-4-5 1 kV for I/O in common mode conforming to EN/IEC 61000-4-5 1 kV for shielded cable in common mode conforming to EN/IEC 61000-4-5 0.5 kV for power lines (DC) in differential mode conforming to EN/IEC 61000-4-5 1 kV for power lines (AC) in differential mode conforming to EN/IEC 61000-4-5 1 kV for relay output in differential mode conforming to EN/IEC 61000-4-5 0.5 kV for power lines (DC) in common mode conforming to EN/IEC 61000-4-5 |
|
| resistance to conducted disturbances |
10 Vrms (0.15...80 MHz) conforming to EN/IEC 61000-4-6
3 Vrms (0.1...80 MHz) conforming to Marine specification (LR, ABS, DNV, GL) 10 Vrms (spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)) conforming to Marine specification (LR, ABS, DNV, GL) |
|
| electromagnetic emission |
Conducted emissions conforming to EN/IEC 55011 power lines (AC),
0.15...0.5 MHz : 79 dBμV/m QP/66 dBμV/m AV
Conducted emissions conforming to EN/IEC 55011 power lines (AC), 0.5...300 MHz : 73 dBμV/m QP/60 dBμV/m AV Conducted emissions conforming to EN/IEC 55011 power lines, 10...150 kHz : 120...69 dBµV/m QP Conducted emissions conforming to EN/IEC 55011 power lines, 1.5...30 MHz : 63 dBμV/m QP Radiated emissions conforming to EN/IEC 55011 class A 10 m, 30...230 MHz : 40 dBμV/m QP Conducted emissions conforming to EN/IEC 55011 power lines, 150...1500 kHz : 79...63 dBμV/m QP Radiated emissions conforming to EN/IEC 55011 class A 10 m, 200...1000 MHz : 47 dBμV/m QP |
|
| immunity to microbreaks |
10 ms
|
|
| ambient air temperature for operation |
-10...55 °C for horizontal installation
-10...35 °C for vertical installation |
|
| ambient air temperature for storage |
-25...70 °C
|
|
| relative humidity |
10...95 % without condensation in operation
10...95 % without condensation in storage |
|
| IP degree of protection |
IP20 with protective cover in place
|
|
| pollution degree |
<= 2
|
|
| operating altitude |
0...2000 m
|
|
| storage altitude |
0...3000 m
|
|
| vibration resistance |
