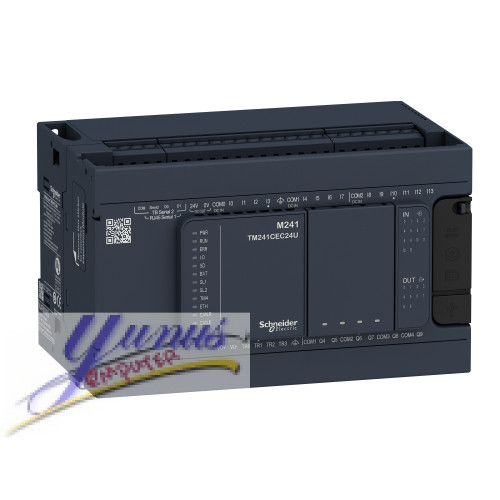

Schneider TM241C24R Controller M241 with 24 I/O Relay – Advanced Automation Solution
Product Overview:
Elevate your automation and control systems with the Schneider TM241C24R Controller M241, a cutting-edge solution designed for superior performance and flexibility in industrial applications. This high-performance controller integrates 24 I/O relay channels, providing robust and reliable automation capabilities for complex systems.
Key Features:
Advanced Control Architecture: The TM241C24R leverages Schneider Electric's state-of-the-art control technology to deliver exceptional processing power and operational efficiency. Its sophisticated architecture supports advanced automation tasks, making it ideal for a wide range of industrial applications.
Comprehensive I/O Configuration: Featuring 24 relay outputs and 24 digital inputs, the TM241C24R offers a versatile I/O configuration that can be customized to meet the specific needs of your system. This configuration supports a variety of digital control and monitoring tasks, ensuring seamless integration with other system components.
Enhanced Connectivity Options: The controller comes with integrated communication ports, including Ethernet and serial interfaces, facilitating easy connection with other devices and networks. This robust connectivity ensures reliable data exchange and system integration, enhancing overall operational efficiency.
Robust Design and Durability: Designed for industrial environments, the TM241C24R is built to withstand challenging conditions. Its rugged construction ensures long-term reliability and performance, even in harsh or demanding settings.
User-Friendly Programming: The TM241C24R is compatible with Schneider Electric's EcoStruxure™ Machine Expert software, offering an intuitive programming environment. This ease of use allows for rapid development and deployment of automation solutions, reducing time-to-market and operational costs.
Scalable and Flexible: The modular design of the M241 series allows for scalability and flexibility, accommodating future expansion and modifications. This adaptability makes the TM241C24R an ideal choice for evolving automation needs.
Energy Efficiency: Designed with energy efficiency in mind, the TM241C24R helps reduce overall power consumption and operational costs. Its efficient design contributes to a lower total cost of ownership and supports sustainable practices.
Applications:
The Schneider TM241C24R Controller M241 is suitable for a variety of applications, including:
- Manufacturing automation
- Process control systems
- Building management systems
- Energy management and optimization
- Infrastructure automation
Technical Specifications:
- Model: Schneider TM241C24R
- Type: Programmable Logic Controller (PLC)
- I/O Configuration: 24 relay outputs, 24 digital inputs
- Communication Ports: Ethernet, serial interfaces
- Programming Software: EcoStruxure™ Machine Expert
- Operating Temperature Range: [Specify temperature range]
- Power Supply: [Specify power supply requirements]
- Dimensions: [Specify dimensions]
- Weight: [Specify weight]
Why Choose Schneider TM241C24R?
The Schneider TM241C24R Controller M241 stands out for its advanced features, durability, and user-friendly design. It is engineered to meet the demands of modern industrial automation with precision and efficiency. Trust Schneider Electric’s expertise to drive your automation projects forward with a controller that combines innovation with reliability.
Contact Us:
For more information about the Schneider TM241C24R Controller M241, or to request a quote, please contact our sales team at [your contact information] or visit [your website URL]. Experience the future of industrial automation with Schneider Electric.
| range of product |
Modicon M241
|
|
|---|---|---|
| product or component type |
Logic controller
|
|
| [Us] rated supply voltage |
100...240 V AC
|
|
| discrete input number |
14 discrete input including 8 fast input conforming to IEC
61131-2 Type 1
|
|
| discrete output type |
Relay
Transistor |
|
| discrete output number |
6 relay
4 transistor including 4 fast output |
|
| discrete output voltage |
24 V DC for transistor output
5...125 V DC for relay output 5...250 V AC for relay output |
|
| discrete output current |
2 A with Q4...Q9 terminal(s) for relay output
0.1 A with TR0...TR3 terminal(s) for fast output (PTO mode) 0.5 A with TR0...TR3 terminal(s) for transistor output |
| discrete I/O number |
24
|
|
|---|---|---|
| number of I/O expansion module |
7 (local I/O architecture)
14 (remote I/O architecture) |
|
| supply voltage limits |
85...264 V
|
|
| network frequency |
50/60 Hz
|
|
| discrete input logic |
Sink or source
|
|
| discrete input voltage |
24 V
|
|
| discrete input voltage type |
DC
|
|
| voltage state 1 guaranteed |
>= 15 V for input
|
|
| voltage state 0 guaranteed |
<= 5 V for input
|
|
| discrete input current |
5 mA for input
|
|
| input impedance |
4.7 kOhm for input
|
|
| response time |
50 µs turn-on operation with I0...I13 terminal(s) for input
|
|
| configurable filtering time |
1 µs for fast input
|
|
| discrete output logic |
Positive logic (source)
|
|
| output voltage limits |
125 V DC relay output
30 V DC transistor output 277 V AC relay output |
|
| output frequency |
<= 1 kHz for transistor output
<= 20 kHz for fast output (PWM mode) <= 100 kHz for fast output (PLS mode) |
|
| accuracy |
+/- 0.1 % at 0.02...0.1 kHz for fast output
+/- 1 % at 0.1...1 kHz for fast output |
|
| protection type |
Short-circuit protection for transistor output
Short-circuit and overload protection with automatic reset for transistor output Reverse polarity protection for transistor output Without protection for relay output |
|
| reset time |
10 ms automatic reset output
12 s automatic reset fast output |
|
| memory capacity |
8 MB for program
64 MB for system memory RAM |
|
| data backed up |
128 MB built-in flash memory for backup of user programs
|
|
| data storage equipment |
<= 16 GB SD card optional
|
|
| battery type |
BR2032 lithium non-rechargeable, battery life: 4 yr
|
|
| backup time |
2 years at 25 °C
|
|
| execution time for 1 KInstruction |
0.3 ms for event and periodic task
0.7 ms for other instruction |
|
| application structure |
8 external event tasks
4 cyclic master tasks 3 cyclic master tasks + 1 freewheeling task 8 event tasks |
|
| realtime clock |
With
|
|
| clock drift |
<= 60 s/month at 25 °C
|
|
| positioning functions |
PTO function 4 channel(s) (positioning frequency: 100 kHz)
|
|
| counting input number |
4 fast input (HSC mode) at 200 kHz
14 standard input at 1 kHz |
|
| control signal type |
A/B signal at 100 kHz for fast input (HSC mode)
Pulse/direction signal at 200 kHz for fast input (HSC mode) Single phase signal at 200 kHz for fast input (HSC mode) |
|
| integrated connection type |
USB port with connector mini B USB 2.0
Non isolated serial link "serial 1" with connector RJ45 and interface RS232/RS485 Non isolated serial link "serial 2" with connector removable screw terminal block and interface RS485 |
|
| supply |
Serial link supply "serial 1" at 5 V, <= 200 mA
|
|
| transmission rate |
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of
15 m - communication protocol: RS485
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m - communication protocol: RS232 480 Mbit/s for bus length of 3 m - communication protocol: USB |
|
| communication port protocol |
Modbus non isolated serial link with master/slave method
|
|
| local signalling |
1 LED green for SD card access (SD)
1 LED red for BAT 1 LED green for SL1 1 LED green for SL2 1 LED per channel green for I/O state 1 LED red for I/O error (I/O) 1 LED red for bus fault on TM4 (TM4) 1 LED red for module error (ERR) 1 LED green for PWR 1 LED green for RUN |
|
| electrical connection |
Removable screw terminal block for inputs and outputs (pitch
5.08 mm)
Removable screw terminal block for connecting the 24 V DC power supply (pitch 5.08 mm) |
|
| cable distance between devices |
Unshielded cable: <= 50 m for input
Shielded cable: <= 10 m for fast input Unshielded cable: <= 50 m for output Shielded cable: <= 3 m for fast output |
|
| insulation |
500 V AC between supply and internal logic
Non-insulated between supply and ground |
|
| marking |
CE
|
|
| sensor power supply |
24 V DC at 400 mA supplied by the controller
|
|
| surge withstand |
2 kV for power lines (AC) in common mode conforming to EN/IEC
61000-4-5
2 kV for relay output in common mode conforming to EN/IEC 61000-4-5 1 kV for shielded cable in common mode conforming to EN/IEC 61000-4-5 1 kV for power lines (AC) in differential mode conforming to EN/IEC 61000-4-5 1 kV for relay output in differential mode conforming to EN/IEC 61000-4-5 1 kV for input in common mode conforming to EN/IEC 61000-4-5 1 kV for transistor output in common mode conforming to EN/IEC 61000-4-5 |
|
| mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715 Plate or panel with fixing kit |
|
| height |
90 mm
|
|
| depth |
95 mm
|
|
| width |
150 mm
|
|
| product weight |
0.53 kg
|
| standards |
CSA C22.2 No 142
ANSI/ISA 12-12-01 UL 1604 CSA C22.2 No 213 EN/IEC 61131-2 : 2007 Marine specification (LR, ABS, DNV, GL) UL 508 |
|
|---|---|---|
| product certifications |
CSA
IACS E10 cULus RCM |
|
| resistance to electrostatic discharge |
4 kV on contact conforming to EN/IEC 61000-4-2
8 kV in air conforming to EN/IEC 61000-4-2 |
|
| resistance to electromagnetic fields |
10 V/m (80 MHz...1 GHz) conforming to EN/IEC 61000-4-3
3 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3 1 V/m (2 GHz...3 GHz) conforming to EN/IEC 61000-4-3 |
|
| resistance to fast transients |
2 kV for power lines conforming to EN/IEC 61000-4-4
2 kV for relay output conforming to EN/IEC 61000-4-4 1 kV for serial link conforming to EN/IEC 61000-4-4 1 kV for input conforming to EN/IEC 61000-4-4 1 kV for transistor output conforming to EN/IEC 61000-4-4 |
|
| resistance to conducted disturbances |
10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6
3 V (0.1...80 MHz) conforming to Marine specification (LR, ABS, DNV, GL) 10 V (spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)) conforming to Marine specification (LR, ABS, DNV, GL) |
|
| electromagnetic emission |
Conducted emissions, test level: 120...69 dBµV/m QP, condition
of test: power lines (radio frequency: 10...150 kHz) conforming
to EN/IEC 55011
Conducted emissions, test level: 63 dBμV/m QP, condition of test: power lines (radio frequency: 1.5...30 MHz) conforming to EN/IEC 55011 Conducted emissions, test level: 79 dBμV/m QP/66 dBμV/m AV, condition of test: power lines (radio frequency: 0.15...0.5 MHz) conforming to EN/IEC 55011 Conducted emissions, test level: 73 dBμV/m QP/60 dBμV/m AV, condition of test: power lines (radio frequency: 0.5...300 MHz) conforming to EN/IEC 55011 Radiated emissions, test level: 40 dBμV/m QP with class A, condition of test: 10 m (radio frequency: 30...230 MHz) conforming to EN/IEC 55011 Conducted emissions, test level: 79...63 dBμV/m QP, condition of test: power lines (radio frequency: 150...1500 kHz) conforming to EN/IEC 55011 Radiated emissions, test level: 47 dBμV/m QP with class A, condition of test: 10 m (radio frequency: 230...1000 MHz) conforming to EN/IEC 55011 |
|
| immunity to microbreaks |
10 ms
|
|
| ambient air temperature for operation |
-10...55 °C for horizontal installation
-10...50 °C for vertical installation |
|
| ambient air temperature for storage |
-25...70 °C
|
|
| relative humidity |
10...95 % without condensation in operation
10...95 % without condensation in storage |
|
| IP degree of protection |
IP20 with protective cover in place
|
|
| pollution degree |
2
|
|
| operating altitude |
0...2000 m
|
|
| storage altitude |
0...3000 m
|
|
| vibration resistance |
3.5 mm (vibration frequency: 5...8.4 Hz) on symmetrical rail
3 gn (vibration frequency: 8.4...150 Hz) on symmetrical rail 3.5 mm (vibration frequency: 5...8.4 Hz) on panel mounting 3 gn (vibration frequency: 8.4...150 Hz) on panel mounting |
|
| shock resistance |
15 gn for 11 ms
|
Schneider TM241C24R Controller M241 – 24 I/O Relay PLC
- Brand: Schneider
- Product Code: TM241C24R
- Availability: 1000
