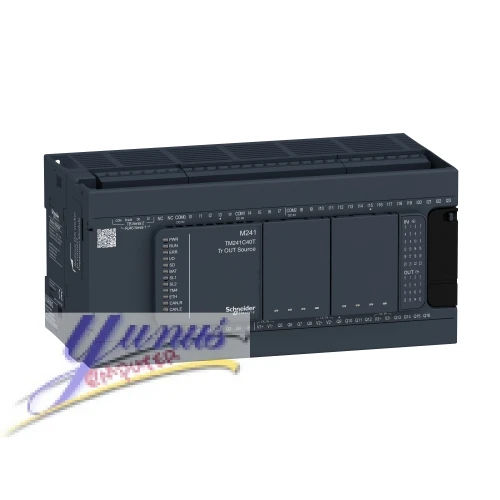

Schneider TM241C40T Controller M241 - 40 I/O Transistor PNP
Product Overview:
Elevate your automation capabilities with the Schneider TM241C40T Controller M241, a state-of-the-art programmable logic controller (PLC) designed to meet the demands of modern industrial applications. This advanced controller is equipped with 40 I/O points featuring PNP transistor outputs, ensuring optimal performance and flexibility for a wide range of automation tasks.
Key Features:
- High Performance: The Schneider TM241C40T Controller M241 delivers exceptional processing speed and reliability, designed to handle complex control operations with ease.
- 40 I/O Points: Featuring 40 integrated input/output (I/O) points, this PLC supports extensive connectivity and configuration options to accommodate various industrial requirements.
- Transistor PNP Outputs: Equipped with PNP transistor outputs, the TM241C40T provides efficient and reliable switching capabilities, ideal for controlling digital devices and actuators.
- Scalability and Flexibility: The modular design allows for easy expansion and integration with other Schneider Electric modules, ensuring that the system can grow with your business needs.
- User-Friendly Programming: Simplify development and deployment with Schneider Electric’s EcoStruxure™ Machine Expert software, offering intuitive programming and diagnostic tools.
- Robust Design: Built to withstand harsh industrial environments, the TM241C40T features a durable construction that ensures long-term performance and reliability.
- Communication Protocols: Supports various communication protocols, enabling seamless integration with other industrial networks and systems.
Technical Specifications:
- Model Number: TM241C40T
- Type: Programmable Logic Controller (PLC)
- I/O Configuration: 40 I/O Points
- Output Type: Transistor PNP
- Programming Software: EcoStruxure™ Machine Expert
- Communication Ports: [Specify communication ports if applicable]
- Power Supply: [Specify power supply details if applicable]
- Operating Temperature Range: [Specify temperature range if applicable]
- Dimensions: [Specify dimensions if applicable]
- Mounting Type: [Specify mounting type if applicable]
Applications:
The Schneider TM241C40T Controller M241 is ideal for a variety of industrial automation applications, including:
- Manufacturing Processes: Control and monitor machinery, conveyors, and production lines.
- Building Automation: Manage HVAC systems, lighting controls, and security systems.
- Material Handling: Optimize the operation of automated storage and retrieval systems.
Why Choose Schneider TM241C40T?
Choosing the Schneider TM241C40T Controller M241 means investing in a high-performance, reliable, and versatile PLC that meets the highest standards of industrial automation. Schneider Electric’s commitment to innovation and quality ensures that you receive a product that not only meets but exceeds your automation needs.
For more information on the Schneider TM241C40T Controller M241 or to request a quote, please contact us or visit our website.
| range of product |
Modicon M241
|
|
|---|---|---|
| product or component type |
Logic controller
|
|
| [Us] rated supply voltage |
24 V DC
|
|
| discrete input number |
24 discrete input including 8 fast input conforming to IEC
61131-2 Type 1
|
|
| discrete output type |
Transistor
|
|
| discrete output number |
16 transistor including 4 fast output
|
|
| discrete output voltage |
24 V DC for transistor output
|
|
| discrete output current |
0.1 A with Q0...Q3 terminal(s) for fast output (PTO mode)
0.5 A with Q0...Q15 terminal(s) for transistor output |
| discrete I/O number |
40
|
|
|---|---|---|
| number of I/O expansion module |
7 (local I/O architecture)
14 (remote I/O architecture) |
|
| supply voltage limits |
20.4...28.8 V
|
|
| inrush current |
50 A
|
|
| power consumption in W |
32.6...40.4 W with max number of I/O expansion module
|
|
| discrete input logic |
Sink or source
|
|
| discrete input voltage |
24 V
|
|
| discrete input voltage type |
DC
|
|
| voltage state 1 guaranteed |
>= 15 V for input
|
|
| voltage state 0 guaranteed |
<= 5 V for input
|
|
| discrete input current |
7 mA for input
10.7 mA for fast input |
|
| input impedance |
4.7 kOhm for input
2.81 kOhm for fast input |
|
| response time |
<= 2 µs turn-on operation with I0...I7 terminal(s) for fast
input
<= 2 µs turn-off operation with I0...I7 terminal(s) for fast input <= 2 µs turn-on operation with Q0...Q3 terminal(s) for fast output <= 2 µs turn-off operation with Q0...Q3 terminal(s) for fast output 50 µs turn-on operation with I0...I15 terminal(s) for input 50 µs turn-off operation with I0...I15 terminal(s) for input <= 34 µs turn-on operation with Q0...Q15 terminal(s) for output <= 250 µs turn-off operation with Q0...Q15 terminal(s) for output |
|
| configurable filtering time |
1 µs for fast input
12 ms for fast input 0 ms for input 1 ms for input 4 ms for input 12 ms for input |
|
| discrete output logic |
Positive logic (source)
|
|
| output voltage limits |
30 V DC
|
|
| current per output common |
<= 2 A
|
|
| output frequency |
<= 20 kHz for fast output (PWM mode)
<= 100 kHz for fast output (PLS mode) <= 1 kHz for output |
|
| accuracy |
+/- 0.1 % at 0.02...0.1 kHz for fast output
+/- 1 % at 0.1...1 kHz for fast output |
|
| leakage current |
<= 5 µA for output
|
|
| voltage drop |
<= 1 V
|
|
| tungsten load |
<= 2.4 W
|
|
| protection type |
Short-circuit and overload protection with automatic reset
Reverse polarity protection for fast output Short-circuit protection |
|
| reset time |
10 ms automatic reset output
12 s automatic reset fast output |
|
| memory capacity |
8 MB for program
64 MB for system memory RAM |
|
| data backed up |
128 MB built-in flash memory for backup of user programs
|
|
| data storage equipment |
<= 16 GB SD card optional
|
|
| battery type |
BR2032 lithium non-rechargeable, battery life: 4 yr
|
|
| backup time |
2 years at 25 °C
|
|
| execution time for 1 KInstruction |
0.3 ms for event and periodic task
0.7 ms for other instruction |
|
| application structure |
4 cyclic master tasks
8 event tasks 8 external event tasks 3 cyclic master tasks + 1 freewheeling task |
|
| realtime clock |
With
|
|
| clock drift |
<= 60 s/month at 25 °C
|
|
| positioning functions |
PTO function 4 channel(s) (positioning frequency: 100 kHz)
PTO function 4 channel(s) for transistor output (positioning frequency: 1 kHz) |
|
| counting input number |
4 fast input (HSC mode) at 200 kHz
16 standard input at 1 kHz |
|
| control signal type |
A/B signal at 100 kHz for fast input (HSC mode)
Pulse/direction signal at 200 kHz for fast input (HSC mode) Single phase signal at 200 kHz for fast input (HSC mode) |
|
| integrated connection type |
USB port with connector mini B USB 2.0
Non isolated serial link "serial 1" with connector RJ45 and interface RS232/RS485 Non isolated serial link "serial 2" with connector removable screw terminal block and interface RS485 |
|
| supply |
Serial link supply "serial 1" at 5 V, <= 200 mA
|
|
| transmission rate |
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of
15 m - communication protocol: RS485
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m - communication protocol: RS232 480 Mbit/s for bus length of 3 m - communication protocol: USB |
|
| communication port protocol |
Modbus non isolated serial link with master/slave method
|
|
| local signalling |
1 LED green for SD card access (SD)
1 LED red for BAT 1 LED green for SL1 1 LED green for SL2 1 LED per channel green for I/O state 1 LED red for I/O error (I/O) 1 LED red for bus fault on TM4 (TM4) 1 LED red for module error (ERR) 1 LED green for PWR 1 LED green for RUN |
|
| electrical connection |
Removable screw terminal block for inputs and outputs (pitch
5.08 mm)
Removable screw terminal block for connecting the 24 V DC power supply (pitch 5.08 mm) |
|
| cable distance between devices |
Unshielded cable: <= 50 m for input
Shielded cable: <= 10 m for fast input Unshielded cable: <= 50 m for output Shielded cable: <= 3 m for fast output |
|
| insulation |
500 V AC between fast input and internal logic
Non-insulated between inputs 500 V AC between output and internal logic 500 V AC between fast output and internal logic Non-insulated between outputs 500 V AC between input and internal logic 500 V AC between output groups 500 V AC between supply and internal logic Non-insulated between supply and ground |
|
| marking |
CE
|
|
| surge withstand |
1 kV for power lines (DC) in common mode conforming to EN/IEC
61000-4-5
1 kV for shielded cable in common mode conforming to EN/IEC 61000-4-5 0.5 kV for power lines (DC) in differential mode conforming to EN/IEC 61000-4-5 1 kV for relay output in differential mode conforming to EN/IEC 61000-4-5 1 kV for input in common mode conforming to EN/IEC 61000-4-5 1 kV for transistor output in common mode conforming to EN/IEC 61000-4-5 |
|
| mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715 Plate or panel with fixing kit |
|
| height |
90 mm
|
|
| depth |
95 mm
|
|
| width |
190 mm
|
|
| product weight |
0.62 kg
|
| standards |
CSA C22.2 No 142
ANSI/ISA 12-12-01 UL 1604 CSA C22.2 No 213 EN/IEC 61131-2 : 2007 Marine specification (LR, ABS, DNV, GL) UL 508 |
|
|---|---|---|
| product certifications |
CSA
RCM IACS E10 cULus |
|
| resistance to electrostatic discharge |
4 kV on contact conforming to EN/IEC 61000-4-2
8 kV in air conforming to EN/IEC 61000-4-2 |
|
| resistance to electromagnetic fields |
10 V/m (80 MHz...1 GHz) conforming to EN/IEC 61000-4-3
3 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3 1 V/m (2 GHz...3 GHz) conforming to EN/IEC 61000-4-3 |
|
| resistance to fast transients |
2 kV for power lines conforming to EN/IEC 61000-4-4
1 kV for serial link conforming to EN/IEC 61000-4-4 1 kV for input conforming to EN/IEC 61000-4-4 1 kV for transistor output conforming to EN/IEC 61000-4-4 |
|
| resistance to conducted disturbances |
10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6
3 V (0.1...80 MHz) conforming to Marine specification (LR, ABS, DNV, GL) 10 V (spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)) conforming to Marine specification (LR, ABS, DNV, GL) |
|
| electromagnetic emission |
Conducted emissions, test level: 120...69 dBµV/m QP, condition
of test: power lines (radio frequency: 10...150 kHz) conforming
to EN/IEC 55011
Conducted emissions, test level: 63 dBμV/m QP, condition of test: power lines (radio frequency: 1.5...30 MHz) conforming to EN/IEC 55011 Radiated emissions, test level: 40 dBμV/m QP with class A (radio frequency: 30...230 MHz) conforming to EN/IEC 55011 Conducted emissions, test level: 79...63 dBμV/m QP, condition of test: power lines (radio frequency: 150...1500 kHz) conforming to EN/IEC 55011 Radiated emissions, test level: 47 dBμV/m QP with class A (radio frequency: 230...1000 MHz) conforming to EN/IEC 55011 |
|
| immunity to microbreaks |
10 ms
|
|
| ambient air temperature for operation |
-10...55 °C for horizontal installation
-10...50 °C for vertical installation |
|
| ambient air temperature for storage |
-25...70 °C
|
|
| relative humidity |
10...95 % without condensation in operation
10...95 % without condensation in storage |
|
| IP degree of protection |
IP20 with protective cover in place
|
|
| pollution degree |
2
|
|
| operating altitude |
0...2000 m
|
|
| storage altitude |
0...3000 m
|
|
| vibration resistance |
3.5 mm (vibration frequency: 5...8.4 Hz) on symmetrical rail
3 gn (vibration frequency: 8.4...150 Hz) on symmetrical rail 3.5 mm (vibration frequency: 5...8.4 Hz) on panel mounting 3 gn (vibration frequency: 8.4...150 Hz) on panel mounting |
|
| shock resistance |
15 gn for 11 ms
|
