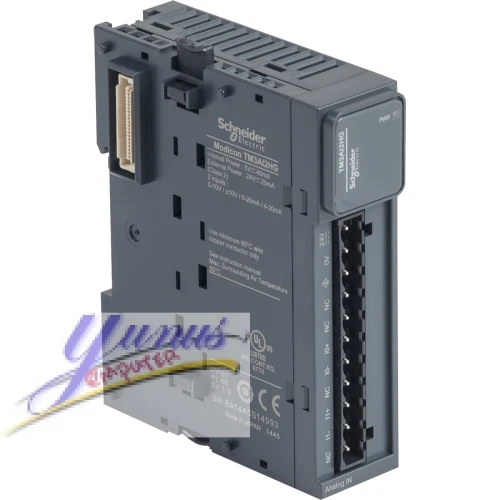

Schneider TM3AI2HG Module TM3 - 2 Analog Inputs, High Resolution, Spring Terminal
Elevate your automation and control systems with the Schneider TM3AI2HG Module TM3, a cutting-edge solution designed to deliver exceptional performance and reliability. This high-resolution analog input module is engineered for precision and versatility, making it an ideal choice for a wide range of industrial applications.
Key Features:
High-Resolution Analog Inputs: The TM3AI2HG module offers two high-resolution analog inputs, ensuring accurate measurement and control of your processes. Each channel is capable of handling a wide range of input signals, providing precise data for critical decision-making and system optimization.
Spring Terminal Connection: Featuring a spring terminal connection design, this module facilitates secure and reliable wiring. The spring terminals simplify installation and maintenance, reducing the risk of loose connections and ensuring long-term stability.
Enhanced Performance: The TM3AI2HG module is designed to deliver superior performance in demanding environments. With its high-resolution capabilities, it ensures accurate data acquisition, which is essential for complex automation tasks and high-precision control.
Versatile Application: Ideal for applications requiring detailed analog signal processing, this module is suitable for a variety of industrial sectors, including manufacturing, energy management, and process control. Its versatility makes it a valuable addition to any automation system.
Seamless Integration: The TM3AI2HG module integrates seamlessly with Schneider Electric’s TM3 series, providing a cohesive and efficient solution for your automation needs. Its compatibility with Schneider’s existing control systems ensures effortless integration and enhanced functionality.
Robust Construction: Built to withstand the rigors of industrial environments, this module features a robust construction that ensures durability and reliability. It is engineered to operate efficiently in a wide range of temperatures and conditions.
Specifications:
- Analog Inputs: 2
- Input Type: High Resolution
- Connection Type: Spring Terminal
- Module Series: TM3
- Compatibility: Schneider Electric’s TM3 series
Applications:
The Schneider TM3AI2HG Module TM3 is ideal for applications that demand high-precision analog input capabilities, including:
- Manufacturing Automation: Enhance process control and monitoring with accurate analog signal measurement.
- Energy Management: Improve energy efficiency and system performance through precise data acquisition.
- Process Control: Achieve reliable control in complex industrial processes with high-resolution inputs.
Why Choose Schneider TM3AI2HG?
Schneider Electric’s TM3AI2HG Module TM3 stands out for its precision, reliability, and ease of integration. Its high-resolution inputs and spring terminal connections ensure superior performance and simplified installation, making it an optimal choice for advanced automation and control systems.
Optimize your industrial processes with the Schneider TM3AI2HG Module TM3. Experience unparalleled accuracy and performance today.
For more information or to purchase the Schneider TM3AI2HG Module TM3, contact us
| range of product |
Modicon TM3
|
|
|---|---|---|
| product or component type |
Analog input module
|
|
| range compatibility |
Modicon M251
Modicon M241 Modicon M221 |
|
| analogue input number |
2
|
|
| analogue input type |
Current, analogue input range: 4...20 mA
Current, analogue input range: 0...20 mA Voltage, analogue input range: 0...10 V Voltage, analogue input range: - 10...10 V |
| analogue input resolution |
15 bits + sign
16 bits |
|
|---|---|---|
| permissible continuous overload |
13 V voltage
40 mA current |
|
| input impedance |
<= 50 Ohm current
>= 1 MOhm voltage |
|
| LSB value |
2.44 mV, analogue input: 0...10 V voltage
4.88 mV, analogue input: - 10...10 V voltage 4.88 µA, analogue input: 0...20 mA current 3.91 µA, analogue input: 4...20 mA current |
|
| conversion time |
1 ms + 1 ms per channel + 1 controller cycle time
|
|
| sampling duration |
<= 1 ms
|
|
| absolute accuracy error |
+/- 0.1 % of full scale at 25 °C
+/- 1 % of full scale |
|
| temperature drift |
+/- 0.006 %FS/°C
|
|
| repeat accuracy |
+/-0.5 %FS
|
|
| non-linearity |
+/- 0.01 %FS
|
|
| cross talk |
<= 1 LSB
|
|
| [Us] rated supply voltage |
24 V DC
|
|
| supply voltage limits |
20.4...28.8 V
|
|
| type of cable |
Twisted shielded pairs cable 30 m for input circuit
|
|
| current consumption |
30 mA at 5 V DC (no load) via bus connector
40 mA at 5 V DC (full load) via bus connector 25 mA at 24 V DC via external supply |
|
| local signalling |
1 LED green for PWR
|
|
| electrical connection |
11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm
adjustment for inputs and supply
|
|
| insulation |
500 V AC between input and internal logic
1500 V AC between input and supply |
|
| marking |
CE
|
|
| surge withstand |
1 kV for power supply with common mode protection conforming to
EN/IEC 61000-4-5
0.5 kV for power supply with differential mode protection conforming to EN/IEC 61000-4-5 1 kV for input with common mode protection conforming to EN/IEC 61000-4-5 |
|
| mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715 Plate or panel with fixing kit |
|
| height |
90 mm
|
|
| depth |
70 mm
|
|
| width |
23.6 mm
|
|
| product weight |
0.1 kg
|
| standards |
EN/IEC 61010-2-201
EN/IEC 61131-2 |
|
|---|---|---|
| resistance to electrostatic discharge |
4 kV on contact conforming to EN/IEC 61000-4-2
8 kV in air conforming to EN/IEC 61000-4-2 |
|
| resistance to electromagnetic fields |
10 V/m at 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m at 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m at 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
|
| resistance to magnetic fields |
30 A/m conforming to EN/IEC 61000-4-8
|
|
| resistance to fast transients |
1 kV I/O conforming to EN/IEC 61000-4-4
|
|
| resistance to conducted disturbances |
10 V at 0.15...80 MHz conforming to EN/IEC 61000-4-6
3 V at spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
|
| electromagnetic emission |
Radiated emissions, test level: 40 dBμV/m QP class A (10 m at
30...230 MHz) conforming to EN/IEC 55011
Radiated emissions, test level: 47 dBμV/m QP class A (10 m at 230...1000 MHz) conforming to EN/IEC 55011 |
|
| immunity to microbreaks |
10 ms
|
|
| ambient air temperature for operation |
-10...55 °C (horizontal installation)
-10...35 °C (vertical installation) |
|
| ambient air temperature for storage |
-25...70 °C
|
|
| relative humidity |
10...95 % without condensation in operation
10...95 % without condensation in storage |
|
| IP degree of protection |
IP20
|
|
| pollution degree |
2
|
|
| operating altitude |
0...2000 m
|
|
| storage altitude |
0...3000 m
|
|
| vibration resistance |
3.5 mm at 5...8.4 Hz with DIN rail mounting support
3 gn at 8.4...150 Hz with DIN rail mounting support |
|
| shock resistance |
15 gn during 11 ms
|
Schneider TM3AI2HG Module TM3 - 2 Analog Inputs High Resolution Spring Terminal
- Brand: Schneider
- Product Code: TM3AI2HG
- Availability: 1000
Tags: Schneider TM3AI2HG, TM3 Module, Analog Inputs, High Resolution, Spring Terminal, Industrial Automation, Precision Measurement, Control Systems, Schneider Electric, Automation Components
