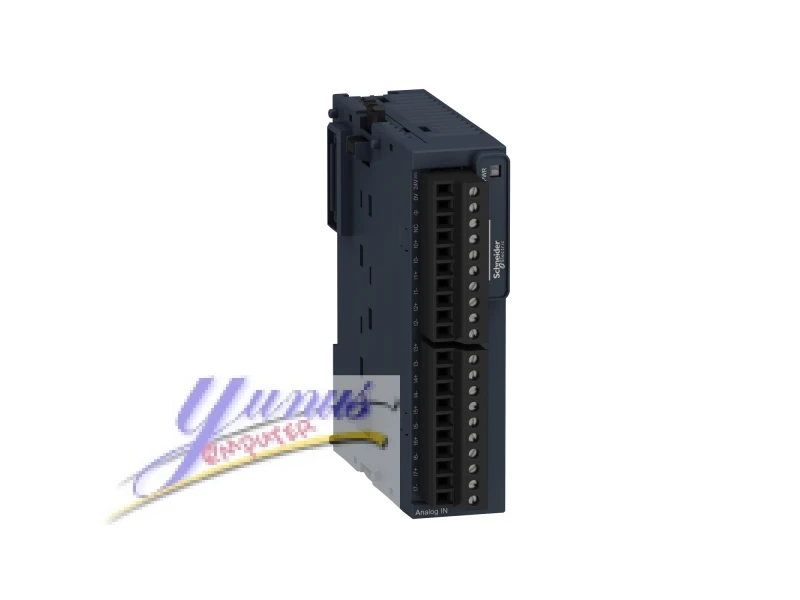

Schneider TM3AI8 Module: Advanced 8-Channel Analog Input Solution
Product Overview: The Schneider TM3AI8 Module is an exceptional component designed to enhance the performance of your automation system with reliable and precise analog input capabilities. Engineered for use with the Schneider Electric Modicon M221 and M241 PLCs, the TM3AI8 module delivers superior accuracy and flexibility, making it ideal for complex industrial applications that demand high-quality data acquisition.
Key Features:
Eight High-Resolution Analog Inputs: The TM3AI8 module offers eight independent analog input channels, providing versatile measurement options for a wide range of process variables. Each channel supports a broad input range, ensuring compatibility with various sensors and signal types.
Enhanced Measurement Accuracy: With a high-resolution 16-bit ADC (Analog-to-Digital Converter), the TM3AI8 module guarantees precise data conversion, reducing measurement errors and ensuring reliable performance in critical applications.
Wide Input Range: The module supports multiple input ranges including voltage (0-10V, ±10V) and current (0-20mA, 4-20mA), allowing for seamless integration with different sensor types and process controls.
Configurable Filtering: Equipped with advanced filtering options, the TM3AI8 module enables users to minimize noise and fluctuations in data readings, enhancing the stability and reliability of your automation processes.
Real-Time Data Processing: The TM3AI8 module features fast data processing capabilities, ensuring real-time monitoring and control. This is crucial for applications that require immediate response and high-speed data handling.
Robust Communication Interface: Integrated with a high-speed communication interface, the TM3AI8 module ensures seamless data transmission between the PLC and the connected field devices. This enhances system performance and data integrity.
Easy Integration and Configuration: Designed for user-friendly integration, the TM3AI8 module can be easily configured using Schneider Electric’s intuitive software tools. The module supports automatic detection and configuration, simplifying setup and reducing installation time.
Applications:
The Schneider TM3AI8 Module is ideally suited for a variety of industrial applications, including:
- Process Control: Monitor and control industrial processes with high accuracy and reliability.
- Environmental Monitoring: Capture and analyze data from environmental sensors for monitoring conditions such as temperature, humidity, and pressure.
- Manufacturing Automation: Integrate with manufacturing systems to manage and optimize production processes.
- Building Management Systems: Use in HVAC systems and other building controls to enhance operational efficiency.
Technical Specifications:
- Input Channels: 8
- Input Types: Voltage (0-10V, ±10V), Current (0-20mA, 4-20mA)
- Resolution: 16-bit
- Communication Interface: High-speed serial communication
- Configuration: Automatic detection and configuration
- Compatibility: Schneider Electric Modicon M221 and M241 PLCs
Benefits:
- Precision and Accuracy: Achieve high-precision measurements for critical applications.
- Flexibility: Adapt to various sensor types and input ranges.
- Efficiency: Streamline integration and configuration processes, saving time and reducing complexity.
- Reliability: Enhance system stability and data integrity with advanced filtering and real-time processing capabilities.
Elevate your automation system with the Schneider TM3AI8 Module, a powerful solution for precise and reliable analog input. For more information or to request a quote, contact us today.
range of product |
Modicon TM3
|
|
---|---|---|
product or component type |
Analog input module
|
|
range compatibility |
Modicon M251
Modicon M241 Modicon M221 |
|
analogue input number |
8
|
|
analogue input type |
Current, analogue input range: 4...20 mA
Current, analogue input range: 0...20 mA Voltage, analogue input range: 0...10 V Voltage, analogue input range: - 10...10 V |
analogue input resolution |
11 bits + sign
12 bits |
|
---|---|---|
permissible continuous overload |
13 V voltage
40 mA current |
|
input impedance |
<= 50 Ohm current
>= 1 MOhm voltage |
|
LSB value |
2.44 mV, analogue input: 0...10 V voltage
4.88 mV, analogue input: - 10...10 V voltage 4.88 µA, analogue input: 0...20 mA current 3.91 µA, analogue input: 4...20 mA current |
|
conversion time |
1 ms + 1 ms per channel + 1 controller cycle time
|
|
sampling duration |
<= 1 ms
|
|
absolute accuracy error |
+/- 1 % of full scale
+/- 0.2 % of full scale at 25 °C |
|
temperature drift |
+/- 0.01 %FS/°C
|
|
repeat accuracy |
+/-0.5 %FS
|
|
non-linearity |
+/- 0.2 %FS
|
|
cross talk |
<= 1 LSB
|
|
[Us] rated supply voltage |
24 V DC
|
|
supply voltage limits |
20.4...28.8 V
|
|
type of cable |
Twisted shielded pairs cable 30 m for input circuit
|
|
current consumption |
40 mA at 5 V DC (full load) via bus connector
35 mA at 5 V DC (no load) via bus connector 30 mA at 24 V DC (no load) via external supply 40 mA at 24 V DC (full load) via external supply |
|
local signalling |
1 LED green for PWR
|
|
electrical connection |
10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm
adjustment for inputs and supply
10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
|
insulation |
500 V AC between input and internal logic
1500 V AC between input and supply |
|
marking |
CE
|
|
surge withstand |
1 kV for power supply with common mode protection conforming to
EN/IEC 61000-4-5
0.5 kV for power supply with differential mode protection conforming to EN/IEC 61000-4-5 1 kV for input with common mode protection conforming to EN/IEC 61000-4-5 |
|
mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715 Plate or panel with fixing kit |
|
height |
90 mm
|
|
depth |
70 mm
|
|
width |
23.6 mm
|
|
product weight |
0.11 kg
|
standards |
EN/IEC 61131-2
EN/IEC 61010-2-201 |
|
---|---|---|
resistance to electrostatic discharge |
4 kV on contact conforming to EN/IEC 61000-4-2
8 kV in air conforming to EN/IEC 61000-4-2 |
|
resistance to electromagnetic fields |
10 V/m at 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m at 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m at 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
|
resistance to magnetic fields |
30 A/m conforming to EN/IEC 61000-4-8
|
|
resistance to fast transients |
1 kV I/O conforming to EN/IEC 61000-4-4
|
|
resistance to conducted disturbances |
10 V at 0.15...80 MHz conforming to EN/IEC 61000-4-6
3 V at spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
|
electromagnetic emission |
Radiated emissions, test level: 40 dBμV/m QP class A (10 m at
30...230 MHz) conforming to EN/IEC 55011
Radiated emissions, test level: 47 dBμV/m QP class A (10 m at 230...1000 MHz) conforming to EN/IEC 55011 |
|
immunity to microbreaks |
10 ms
|
|
ambient air temperature for operation |
-10...55 °C (horizontal installation)
-10...35 °C (vertical installation) |
|
ambient air temperature for storage |
-25...70 °C
|
|
relative humidity |
10...95 % without condensation in operation
10...95 % without condensation in storage |
|
IP degree of protection |
IP20
|
|
pollution degree |
2
|
|
operating altitude |
0...2000 m
|
|
storage altitude |
0...3000 m
|
|
vibration resistance |
3.5 mm at 5...8.4 Hz with DIN rail mounting support
3 gn at 8.4...150 Hz with DIN rail mounting support |
|
shock resistance |
15 gn during 11 ms
|
