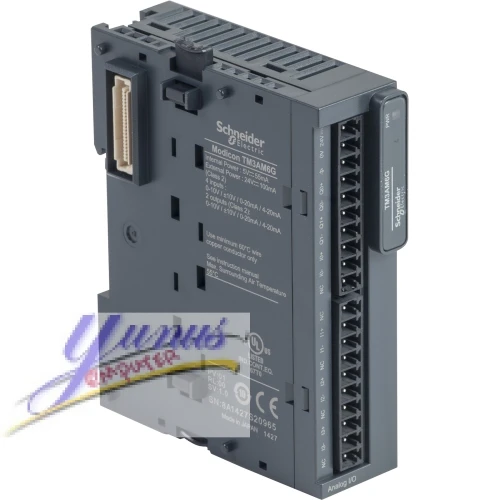

Schneider TM3AM6G Module TM3 – 4 Analog Inputs and 2 Analog Outputs with Spring Terminals
Overview
The Schneider TM3AM6G Module TM3 is an advanced, high-performance I/O expansion module designed to seamlessly integrate with Schneider Electric's Modicon TM3 series programmable logic controllers (PLCs). Engineered for precision and reliability, the TM3AM6G offers four analog inputs and two analog outputs, all featuring user-friendly spring terminals for efficient wiring and maintenance. This module is ideal for applications requiring precise analog data acquisition and control in various industrial settings.
Key Features
Analog Inputs: Equipped with four analog inputs, the TM3AM6G supports a wide range of voltage and current signals, allowing for flexible and accurate data acquisition. Each input channel can handle signals in the range of 0-10V or 4-20mA, catering to various sensor types and measurement needs.
Analog Outputs: The module includes two analog outputs designed to deliver precise control signals. Each output can be configured to provide a voltage signal (0-10V) or a current signal (4-20mA), facilitating the control of external devices and processes.
Spring Terminals: The TM3AM6G is equipped with spring terminals that ensure a secure and reliable connection for wiring. This design not only simplifies the installation process but also minimizes the risk of loose connections and enhances long-term reliability.
Compatibility: The module is fully compatible with Schneider Electric's Modicon TM3 PLCs, providing seamless integration and expansion capabilities. Its design ensures optimal performance and communication within the TM3 ecosystem.
High-Precision Performance: With high-resolution analog-to-digital and digital-to-analog conversion, the TM3AM6G delivers exceptional accuracy and stability in data acquisition and signal output, meeting stringent industrial standards.
Robust Build Quality: Constructed with durable materials and a rugged design, the TM3AM6G is engineered to withstand harsh industrial environments and ensure reliable operation over an extended lifespan.
Technical Specifications
Analog Inputs:
- Channels: 4
- Input Range: 0-10V / 4-20mA
- Resolution: High-resolution conversion
- Accuracy: Precision measurement with minimal deviation
Analog Outputs:
- Channels: 2
- Output Range: 0-10V / 4-20mA
- Resolution: Accurate signal generation
- Performance: Consistent output with minimal drift
Connection Type:
- Terminals: Spring-loaded for secure and easy wiring
Compatibility:
- PLC Series: Schneider Electric Modicon TM3
Environmental Conditions:
- Operating Temperature: Suitable for industrial environments
- Protection: Designed to meet rigorous industry standards
Applications
The Schneider TM3AM6G Module TM3 is ideal for use in a variety of applications including process control, machine automation, and data acquisition systems. Its versatility makes it suitable for industries such as manufacturing, energy, and utilities, where precise analog signal handling is crucial for optimal performance and control.
Why Choose Schneider TM3AM6G?
Choosing the Schneider TM3AM6G Module TM3 means investing in a robust, reliable, and highly accurate analog I/O solution. Its seamless integration with the Modicon TM3 PLC series, combined with user-friendly spring terminals and high-performance specifications, ensures that it meets the demanding needs of modern industrial automation systems.
range of product |
Modicon TM3
|
|
---|---|---|
product or component type |
Input/output analog module
|
|
range compatibility |
Modicon M241
Modicon M251 Modicon M221 |
|
analogue input number |
4
|
|
analogue input type |
Current, analogue input range: 4...20 mA
Current, analogue input range: 0...20 mA Voltage, analogue input range: 0...10 V Voltage, analogue input range: - 10...10 V |
|
analogue output number |
2
|
|
analogue output type |
4...20 mA current
0...20 mA current 0...10 V voltage - 10...10 V voltage |
analogue input resolution |
11 bits + sign
12 bits |
|
---|---|---|
permissible continuous overload |
13 V voltage
40 mA current |
|
input impedance |
<= 50 Ohm current
>= 1 MOhm voltage |
|
analogue output resolution |
11 bits + sign
12 bits |
|
LSB value |
2.44 mV, analogue input: 0...10 V voltage
4.88 mV, analogue input: - 10...10 V voltage 4.88 µA, analogue input: 0...20 mA current 3.91 µA, analogue input: 4...20 mA current |
|
load type |
Resistive
|
|
load impedance ohmic |
1 kOhm voltage
300 Ohm current |
|
stabilisation time |
1 ms
|
|
conversion time |
1 ms + 1 ms per channel + 1 controller cycle time
|
|
sampling duration |
1 ms
10 ms |
|
absolute accuracy error |
+/- 1 % of full scale
+/- 0.2 % of full scale at 25 °C |
|
temperature drift |
+/- 0.01 %FS/°C
|
|
repeat accuracy |
+/-0.5 %FS for input
+/-0.5 %FS for output |
|
non-linearity |
+/- 0.2 %FS
|
|
output ripple |
20 mV
|
|
cross talk |
<= 1 LSB
|
|
[Us] rated supply voltage |
24 V DC
|
|
supply voltage limits |
20.4...28.8 V
|
|
type of cable |
Twisted shielded pairs cable 30 m for input/output circuit
|
|
current consumption |
45 mA at 5 V DC (no load) via bus connector
55 mA at 5 V DC (full load) via bus connector 55 mA at 24 V DC (no load) via external supply 100 mA at 24 V DC (full load) via external supply |
|
local signalling |
1 LED green for PWR
|
|
electrical connection |
10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm
adjustment for inputs
10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs, outputs and supply |
|
insulation |
500 V AC between output and internal logic
500 V AC between input and internal logic 1500 V AC between input and supply 1500 V AC between output and supply |
|
marking |
CE
|
|
surge withstand |
1 kV for power supply with common mode protection conforming to
EN/IEC 61000-4-5
0.5 kV for power supply with differential mode protection conforming to EN/IEC 61000-4-5 1 kV for I/O with common mode protection conforming to EN/IEC 61000-4-5 0.5 kV for I/O with differential mode protection conforming to EN/IEC 61000-4-5 |
|
mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715 Plate or panel with fixing kit |
|
height |
90 mm
|
|
depth |
70 mm
|
|
width |
23.6 mm
|
|
product weight |
0.1 kg
|
standards |
EN/IEC 61131-2
EN/IEC 61010-2-201 |
|
---|---|---|
resistance to electrostatic discharge |
4 kV on contact conforming to EN/IEC 61000-4-2
8 kV in air conforming to EN/IEC 61000-4-2 |
|
resistance to electromagnetic fields |
10 V/m at 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m at 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m at 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
|
resistance to magnetic fields |
30 A/m conforming to EN/IEC 61000-4-8
|
|
resistance to fast transients |
1 kV I/O conforming to EN/IEC 61000-4-4
|
|
resistance to conducted disturbances |
10 V at 0.15...80 MHz conforming to EN/IEC 61000-4-6
3 V at spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
|
electromagnetic emission |
Radiated emissions, test level: 40 dBμV/m QP class A (10 m at
30...230 MHz) conforming to EN/IEC 55011
Radiated emissions, test level: 47 dBμV/m QP class A (10 m at 230...1000 MHz) conforming to EN/IEC 55011 |
|
immunity to microbreaks |
10 ms
|
|
ambient air temperature for operation |
-10...55 °C (horizontal installation)
-10...35 °C (vertical installation) |
|
ambient air temperature for storage |
-25...70 °C
|
|
relative humidity |
10...95 % without condensation in operation
10...95 % without condensation in storage |
|
IP degree of protection |
IP20
|
|
pollution degree |
2
|
|
operating altitude |
0...2000 m
|
|
storage altitude |
0...3000 m
|
|
vibration resistance |
3.5 mm at 5...8.4 Hz with DIN rail mounting support
3 gn at 8.4...150 Hz with DIN rail mounting support |
|
shock resistance |
15 gn during 11 ms
|
