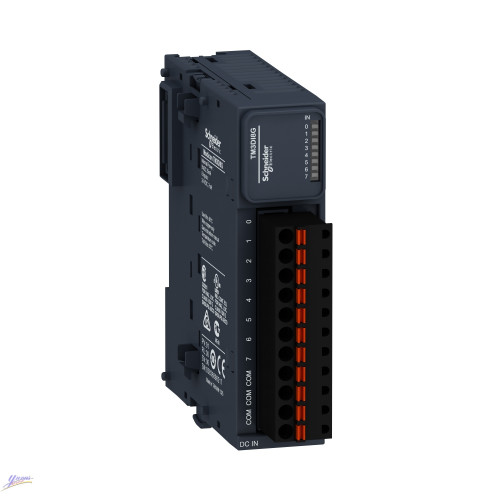

Schneider TM3DI8G Module TM3 - 8 Inputs Spring Terminal
Overview:
The Schneider TM3DI8G Module is an advanced, high-performance digital input module designed to provide exceptional reliability and flexibility for industrial automation applications. As part of Schneider Electric's TM3 series, this module delivers superior functionality with its 8 discrete inputs and robust spring terminal connectivity, ensuring seamless integration into your control systems.
Key Features:
8 Discrete Inputs: The TM3DI8G module offers 8 independent digital input channels, designed to accurately capture and process binary signals. This ensures precise control and monitoring of your automation processes.
Spring Terminal Connectivity: Equipped with user-friendly spring terminals, this module simplifies wiring and ensures secure, vibration-resistant connections. The spring terminal design minimizes maintenance efforts and reduces installation time.
Wide Input Voltage Range: The module supports a broad input voltage range, accommodating various signal levels and enhancing its versatility across different applications.
High-Speed Response: Engineered for rapid signal acquisition, the TM3DI8G module provides quick response times, essential for applications requiring fast and reliable digital signal processing.
Enhanced Durability: Built with high-quality materials and designed to withstand harsh industrial environments, the TM3DI8G module offers exceptional durability and long-term reliability.
Compact Design: Its compact form factor allows for space-efficient installation in control panels, optimizing use of available space and contributing to a tidy and organized system setup.
Easy Configuration: The module supports straightforward configuration and integration with Schneider Electric’s automation platforms, facilitating a hassle-free setup process.
Applications:
The Schneider TM3DI8G Module is ideal for a wide range of industrial applications, including but not limited to:
- Manufacturing Automation: Control and monitor machinery, sensors, and switches with precision and efficiency.
- Process Control: Interface with various field devices to ensure accurate and timely data acquisition.
- Building Automation: Integrate with building management systems for enhanced control over environmental systems.
Technical Specifications:
- Model Number: TM3DI8G
- Input Type: Digital
- Number of Inputs: 8
- Terminal Type: Spring
- Input Voltage Range: [Specify Voltage Range]
- Response Time: [Specify Response Time]
- Operating Temperature Range: [Specify Temperature Range]
- Dimensions: [Specify Dimensions]
- Weight: [Specify Weight]
Compliance and Certification:
The TM3DI8G module adheres to rigorous industry standards and certifications, ensuring compatibility and safety in a variety of operational environments.
Why Choose Schneider TM3DI8G?
Opt for the Schneider TM3DI8G Module to benefit from Schneider Electric’s commitment to quality and innovation. This module is engineered to deliver high performance, reliability, and ease of use, making it a valuable component in your automation and control systems.
For more information or to request a quote, please contact our sales team or visit our website.
| range of product |
Modicon TM3
|
|
|---|---|---|
| product or component type |
Discrete input module
|
|
| range compatibility |
Modicon M221
Modicon M241 Modicon M251 |
|
| discrete input number |
8 input conforming to IEC 61131-2 Type 1
|
|
| discrete input logic |
Sink or source (positive/negative)
|
|
| discrete input voltage |
24 V
|
|
| discrete input current |
7 mA for input
|
| discrete I/O number |
8
|
|
|---|---|---|
| current consumption |
5 mA at 5 V DC via bus connector at state off
0 mA at 24 V DC via bus connector at state on 0 mA at 24 V DC via bus connector at state off 24 mA at 5 V DC via bus connector at state on |
|
| discrete input voltage type |
DC
|
|
| voltage state 1 guaranteed |
15...28.8 V for input
|
|
| current state 1 guaranteed |
>= 2.5 mA for input
|
|
| voltage state 0 guaranteed |
0...5 V for input
|
|
| current state 0 guaranteed |
<= 1 mA for input
|
|
| input impedance |
3.4 kOhm
|
|
| response time |
4 ms for turn-on
4 ms for turn-off |
|
| local signalling |
1 LED per channel green for input status
|
|
| electrical connection |
Removable spring terminal block pitch 5.08 mm with 11
terminal(s) of 2.5 mm² connection capacity for inputs
|
|
| insulation |
Non-insulated between inputs
500 V AC between input and internal logic |
|
| marking |
CE
|
|
| mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715 Plate or panel with fixing kit |
|
| height |
90 mm
|
|
| depth |
84.6 mm
|
|
| width |
27.4 mm
|
|
| product weight |
0.085 kg
|
| standards |
EN/IEC 61131-2
EN/IEC 61010-2-201 |
|
|---|---|---|
| product certifications |
cULus
C-Tick |
|
| resistance to electrostatic discharge |
4 kV (on contact) conforming to EN/IEC 61000-4-2
8 kV (in air) conforming to EN/IEC 61000-4-2 |
|
| resistance to electromagnetic fields |
10 V/m at 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m at 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m at 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
|
| resistance to magnetic fields |
30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
|
|
| resistance to fast transients |
1 kV for I/O conforming to EN/IEC 61000-4-4
|
|
| surge withstand |
1 kV for I/O (DC) in common mode conforming to EN/IEC 61000-4-5
|
|
| resistance to conducted disturbances |
10 Vrms at 0.15...80 MHz conforming to EN/IEC 61000-4-6
3 Vrms at spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
|
| electromagnetic emission |
Radiated emissions, test level: 40 dBμV/m QP with class A,
condition of test: 10 m (radio frequency: 30...230 MHz)
conforming to EN/IEC 55011
Radiated emissions, test level: 47 dBμV/m QP with class A, condition of test: 10 m (radio frequency: 230...1000 MHz) conforming to EN/IEC 55011 |
|
| ambient air temperature for operation |
-10...55 °C for horizontal installation
-10...35 °C for vertical installation |
|
| ambient air temperature for storage |
-25...70 °C
|
|
| relative humidity |
10...95 % without condensation in operation
10...95 % without condensation in storage |
|
| IP degree of protection |
IP20 with protective cover in place
|
|
| pollution degree |
2
|
|
| operating altitude |
0...2000 m
|
|
| storage altitude |
0...3000 m
|
|
| vibration resistance |
3.5 mm (vibration frequency: 5...8.4 Hz) on DIN rail
3 gn (vibration frequency: 8.4...150 Hz) on DIN rail 3.5 mm (vibration frequency: 5...8.4 Hz) on panel 3 gn (vibration frequency: 8.4...150 Hz) on panel |
|
| shock resistance |
15 gn (test wave duration:11 ms)
|
Schneider TM3DI8G Module TM3 - 8 Digital Inputs with Spring Terminals
- Brand: Schneider
- Product Code: TM3DI8G
- Availability: 1000
