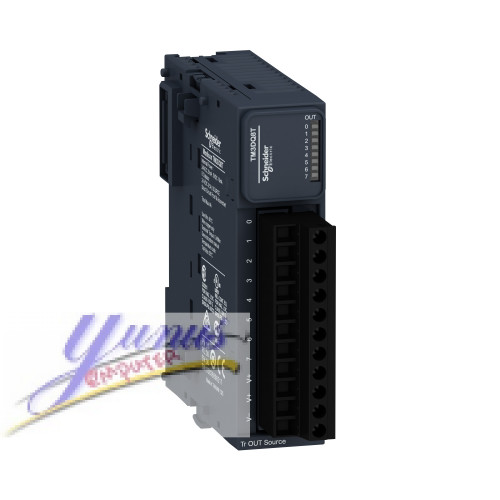

Schneider TM3DQ8T Module TM3 - 8 Outputs Transistor PNP
The Schneider TM3DQ8T Module TM3 is an industrially advanced solution designed to enhance control and automation systems with its versatile functionality and precision engineering. Specifically engineered for seamless integration, this module boasts 8 high-performance transistor PNP outputs, setting the benchmark for reliability and efficiency in automation processes.
Key Features:
Transistor PNP Outputs: Equipped with 8 outputs, each utilizing transistor PNP technology, ensuring swift and accurate response times for seamless control of connected devices.
Seamless Integration: Designed to effortlessly integrate into existing Schneider systems, providing a plug-and-play solution for enhanced control and automation processes.
High-Performance Precision: Delivers unparalleled accuracy and reliability in controlling various industrial equipment and processes, optimizing operational efficiency.
Compact Design: Its compact form factor enables flexible installation, allowing for optimization of space without compromising functionality.
Applications:
Industrial Automation: Ideal for various industrial applications requiring precise control and reliable performance.
Manufacturing: Enhances manufacturing processes by providing efficient control over machinery and equipment.
Robotics: Enables seamless integration into robotic systems for enhanced functionality and control.
Why Choose Schneider TM3DQ8T Module TM3?
Reliability: Built with Schneider's commitment to quality, ensuring long-term reliability and durability.
Versatility: Offers versatility in application, catering to diverse industrial automation needs.
Efficiency: Enhances operational efficiency by streamlining control and automation processes.
Elevate your industrial control systems with the Schneider TM3DQ8T Module TM3. Experience unparalleled precision, reliability, and seamless integration, setting new benchmarks in automation technology.
range of product |
Modicon TM3
|
|
---|---|---|
product or component type |
Discrete output module
|
|
range compatibility |
Modicon M241
Modicon M221 Modicon M251 |
|
discrete output type |
Transistor
|
|
discrete output number |
8
|
|
discrete output logic |
Positive logic (source)
|
|
discrete output voltage |
24 V DC for transistor output
|
|
discrete output current |
50 mA for transistor output
|
discrete I/O number |
8
|
|
---|---|---|
current consumption |
5 mA at 5 V DC via bus connector at state off
0 mA at 24 V DC via bus connector at state off 20 mA at 24 V DC via bus connector at state on 10 mA at 5 V DC via bus connector at state on |
|
response time |
450 µs for turn-on
450 µs for turn-off |
|
leakage current |
<= 0.1 mA for transistor output
|
|
voltage drop |
<= 0.4 V
|
|
tungsten load |
<= 3 W for transistor output
|
|
local signalling |
1 LED per channel green for output status
|
|
electrical connection |
Removable screw terminal block pitch 5.08 mm with 11 terminal(s)
of 2.5 mm² connection capacity for outputs
|
|
cable distance between devices |
Unshielded cable: <= 30 m for transistor output
|
|
insulation |
500 V AC between output and internal logic
Non-insulated between outputs |
|
marking |
CE
|
|
mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715 Plate or panel with fixing kit |
|
height |
90 mm
|
|
depth |
84.6 mm
|
|
width |
27.4 mm
|
|
product weight |
0.76 kg
|
standards |
EN/IEC 61131-2
EN/IEC 61010-2-201 |
|
---|---|---|
product certifications |
C-Tick
cULus |
|
resistance to electrostatic discharge |
4 kV (on contact) conforming to EN/IEC 61000-4-2
8 kV (in air) conforming to EN/IEC 61000-4-2 |
|
resistance to electromagnetic fields |
10 V/m at 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
3 V/m at 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m at 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
|
resistance to magnetic fields |
30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
|
|
resistance to fast transients |
1 kV for I/O conforming to EN/IEC 61000-4-4
|
|
surge withstand |
1 kV for I/O (DC) in common mode conforming to EN/IEC 61000-4-5
|
|
resistance to conducted disturbances |
10 Vrms at 0.15...80 MHz conforming to EN/IEC 61000-4-6
3 Vrms at spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
|
electromagnetic emission |
Radiated emissions, test level: 40 dBμV/m QP with class A,
condition of test: 10 m (radio frequency: 30...230 MHz)
conforming to EN/IEC 55011
Radiated emissions, test level: 47 dBμV/m QP with class A, condition of test: 10 m (radio frequency: 230...1000 MHz) conforming to EN/IEC 55011 |
|
ambient air temperature for operation |
-10...55 °C for horizontal installation
-10...35 °C for vertical installation |
|
ambient air temperature for storage |
-25...70 °C
|
|
relative humidity |
10...95 % without condensation in operation
10...95 % without condensation in storage |
|
IP degree of protection |
IP20 with protective cover in place
|
|
pollution degree |
2
|
|
operating altitude |
0...2000 m
|
|
storage altitude |
0...3000 m
|
|
vibration resistance |
3.5 mm (vibration frequency: 5...8.4 Hz) on DIN rail
3 gn (vibration frequency: 8.4...150 Hz) on DIN rail 3.5 mm (vibration frequency: 5...8.4 Hz) on panel 3 gn (vibration frequency: 8.4...150 Hz) on panel |
|
shock resistance |
15 gn (test wave duration:11 ms)
|
Schneider TM3DQ8T Module TM3 - 8 outputs transistor PNP
- Brand: Schneider
- Product Code: TM3DQ8T
- Availability: 1000
Tags: Schneider TM3DQ8T Module, Transistor PNP Outputs, Industrial Automation, Precision Control
