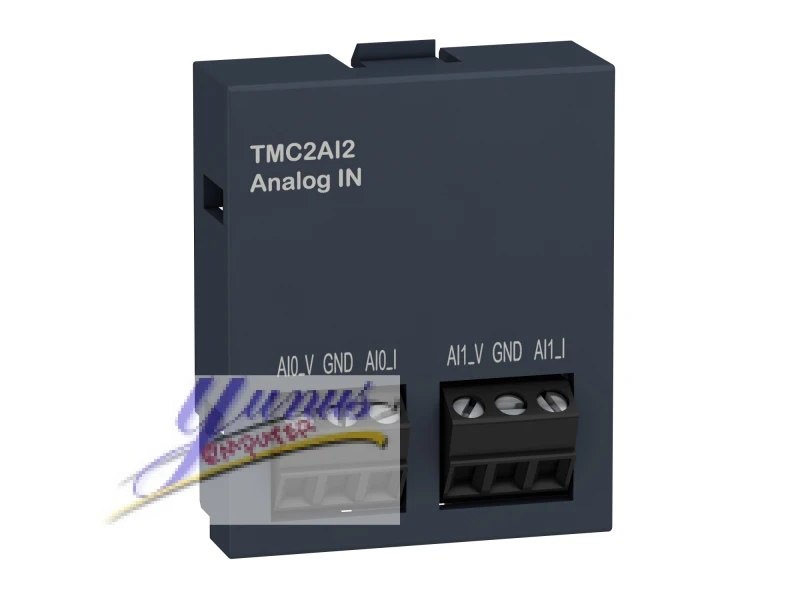

Schneider TMC2AI2 Cartridge M221 - 2 Analog Inputs - I/O Extension
Enhance your automation capabilities with the Schneider TMC2AI2 Cartridge M221, a state-of-the-art I/O extension module designed to deliver unparalleled performance and flexibility. The TMC2AI2 cartridge is engineered for precision and reliability, making it an essential component for advanced industrial applications.
Key Features:
Dual Analog Inputs: The TMC2AI2 features two high-accuracy analog inputs, enabling seamless integration with a wide range of sensors and measurement devices. This allows for precise data acquisition and real-time monitoring of critical parameters in your automation system.
Versatile Input Range: The cartridge supports a broad input range, accommodating various signal types including voltage and current. This versatility ensures compatibility with diverse applications and enhances the module’s flexibility in different operational environments.
Enhanced Data Accuracy: Schneider’s TMC2AI2 is built with cutting-edge technology to ensure high-resolution data acquisition. This precision translates to improved control and decision-making capabilities within your automation processes.
Seamless Integration: Designed to integrate effortlessly with Schneider’s M221 logic controller, the TMC2AI2 cartridge extends the I/O capabilities of your existing system. The plug-and-play functionality simplifies installation and reduces setup time, allowing for rapid deployment in your automation infrastructure.
Robust Performance: With a focus on reliability and durability, the TMC2AI2 cartridge is constructed to withstand harsh industrial conditions. Its robust design ensures consistent performance and longevity, even in demanding environments.
Scalable Solution: The TMC2AI2 offers a scalable solution for expanding your automation system’s input capacity. This flexibility supports future growth and adaptation, making it an ideal choice for evolving industrial applications.
Applications:
The Schneider TMC2AI2 Cartridge M221 is perfect for applications requiring precise analog signal processing, including:
- Industrial process control
- Environmental monitoring
- Equipment diagnostics
- Data acquisition systems
Specifications:
- Input Channels: 2 Analog Inputs
- Input Types: Voltage and Current
- Compatibility: Schneider M221 Logic Controller
- Installation: Plug-and-play
Why Choose Schneider TMC2AI2 Cartridge M221?
Invest in the Schneider TMC2AI2 Cartridge M221 to leverage superior analog input capabilities and optimize your automation processes. With its advanced features and dependable performance, this I/O extension module is designed to meet the rigorous demands of modern industrial applications.
For more information on the Schneider TMC2AI2 Cartridge M221 or to request a quote, contact us today!
range of product |
Modicon M221
|
|
---|---|---|
product or component type |
Analogue input cartridge
|
|
product compatibility |
Modicon M221C
|
|
analogue input number |
2
|
analogue input type |
Current, input range: 4...20 mA
Current, input range: 0...20 mA Voltage, input range: 0...10 V |
|
---|---|---|
analogue input resolution |
12 bits
|
|
LSB value |
3.91 µA (current), input range: 4...20 mA
2.44 mV (voltage), input range: 0...10 V 4.88 µA (current), input range: 0...20 mA |
|
conversion time |
20 ms
|
|
sampling duration |
10 ms
|
|
absolute accuracy error |
+/- 1 % of full scale
+/- 0.1 % of full scale 25 °C |
|
temperature drift |
+/- 0.02 %FS/°C
|
|
repeat accuracy |
+/- 0.5 %FS
|
|
non-linearity |
+/- 0.01 %FS
|
|
cross talk |
<= 1 LSB
|
|
type of cable |
Twisted shielded pairs cable
|
|
electrical connection |
2 screw terminal blocks (pitch 3.81 mm) 1.5 mm² 3 for inputs
|
|
cable distance between devices |
Twisted shielded pairs cable: 30 m for input
|
|
insulation |
Non-insulated between analogue input and internal logic
|
|
height |
41 mm
|
|
depth |
15 mm
|
|
width |
35 mm
|
|
product weight |
0.015 kg
|
|
permissible continuous overload |
13 V (voltage)
40 mA (current) |
|
input impedance |
<= 250 Ohm current
>= 1 MOhm voltage |
immunity to microbreaks |
10 ms
|
---|
