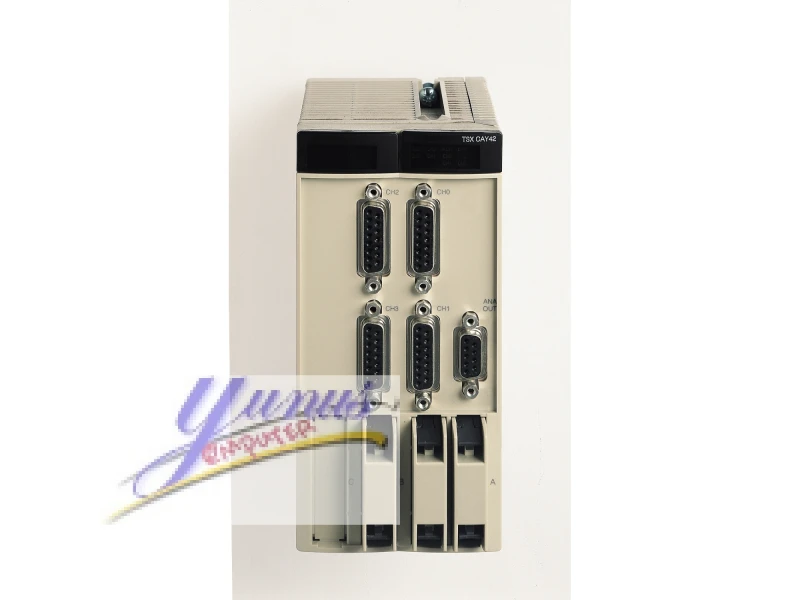

Schneider TSXCAY42C Motion Control Modules for Servomotors - Precision in Motion Control
Enhance the precision and performance of your industrial automation system with the Schneider TSXCAY42C Motion Control Modules. Specifically designed for servomotors, these modules are engineered to provide seamless control and unparalleled accuracy in motion applications. With a response time ranging from 8 milliseconds to 10 seconds and the capability to handle up to 4 axes simultaneously, the TSXCAY42C is the epitome of cutting-edge motion control technology.
Key Features:
1. Precision Control:
Achieve unparalleled precision in motion control with the TSXCAY42C modules. Whether you are involved in robotics, CNC machining, or any application requiring precise movement, these modules deliver the accuracy your system demands.
2. Servomotor Compatibility:
Tailored for servomotors, the TSXCAY42C modules ensure optimal compatibility and synchronization, resulting in smooth and efficient motion control. This compatibility is a key factor in achieving high performance in industrial processes.
3. Responsive Performance:
Experience swift and responsive performance with a remarkable response time of 8 milliseconds to 10 seconds. This quick response is critical in applications where timing is everything, ensuring your system reacts promptly to changing conditions.
4. Multi-Axis Control:
The TSXCAY42C supports up to 4 axes simultaneously, offering versatility in managing multiple motors within a single system. This capability is crucial for complex applications that demand synchronized motion across various axes.
5. Robust Construction:
Built with durability in mind, these motion control modules are designed to withstand the demands of industrial environments. The robust construction ensures reliability and longevity, contributing to the overall stability of your automation system.
6. Seamless Integration:
Effortlessly integrate the TSXCAY42C modules into your existing setup. Compatible with a range of industrial communication protocols, these modules ensure seamless communication with other components of your automation system.
7. User-Friendly Configuration:
Simplify the setup and configuration process with an intuitive user interface. The TSXCAY42C modules are designed to be user-friendly, allowing for easy customization and adjustment to meet the specific requirements of your application.
Applications:
- CNC Machining
- Robotics
- Automated Assembly Lines
- Packaging Systems
- Industrial Conveyor Systems
Conclusion:
Elevate your motion control capabilities to new heights with the Schneider TSXCAY42C Motion Control Modules. Designed for servomotors and offering precision, responsiveness, and multi-axis control, these modules are the cornerstone of advanced automation systems. Invest in the future of motion control technology and unlock the full potential of your industrial processes with Schneider.
Experience precision, reliability, and control with Schneider TSXCAY42C Motion Control Modules.
| range of product |
Modicon Premium Automation platform
|
|
|---|---|---|
| product or component type |
Motion control modules
|
|
| product specific application |
For servo motors
|
|
| servo loop type |
Proportional to overshoot compensation and gain switching 4 ms
|
|
| checks |
Consistency of commands
Encoder coupling, servo drive present, emergency stop Proper execution of movement Sensor power supply Validity of parameters Presence of voltage/sensor feedback counter input |
| speed profile path |
Trapezoidal or parabolic
|
|
|---|---|---|
| resolution |
<= 1000 position units per point
>= 0.5 position units per point |
|
| length of axis |
256...32000000 P
|
|
| acquisition speed |
<= 270000 points/mn
>= 54000 points/mn |
|
| acceleration time |
8 ms...10 s
|
|
| operating mode |
Automatic
Direct drive mode FOLLOWER Manual OFF |
|
| type of axis |
Following axis dynamic ratio
Infinite axis Limited axis |
|
| function of module |
Servo drive offset correction
|
|
| I/O modularity |
4 axes
|
|
| input compatibility |
Absolute encoder SSI output 12...25 bits
Incremental encoder 10...30 V totem pole Incremental encoder 5 V DC RS422 With 2-wire/3-wire sensor (24 DC) auxiliary input Absolute encoder parallel output ABE7CPA11 |
|
| clock frequency |
200 kHz SSI absolute encoder
|
|
| incremental encoder frequency x1 |
500 kHz
|
|
| incremental encoder frequency x 4 |
1000 kHz in counting
250 kHz in input |
|
| power dissipation in W |
10...17 W
|
|
| input type |
Current sink auxiliary input conforming to EN/IEC 1131 Type 2
Resistive counter input Resistive servo drive control input conforming to EN/IEC 1131 Type 1 |
|
| input logic |
Positive
|
|
| input voltage |
24 V 8 mA auxiliary input
24 V 8 mA servo drive control input 5 V 18 mA counter input |
|
| input voltage limits |
<= 5.5 V counter input
19...30 V auxiliary input 19...30 V servo drive control input |
|
| voltage state 1 guaranteed |
>= 11 V auxiliary input
>= 11 V servo drive control input >= 2.4 V counter input |
|
| current state 1 guaranteed |
>= 3.5 mA servo drive control input
>= 3.7 mA counter input >= 6 mA auxiliary input |
|
| voltage state 0 guaranteed |
<= 1.2 V counter input
<= 5 V auxiliary input <= 5 V servo drive control input |
|
| current state 0 guaranteed |
<= 1 mA counter input
<= 1.5 mA servo drive control input <= 2 mA auxiliary input |
|
| input impedance |
270 Ohm counter input
3000 Ohm auxiliary input 3000 Ohm servo drive control input |
|
| number of outputs |
4 analogue output static
4 reflex output static conforming to EN/IEC 61131 4 servo drive validation output relay |
|
| analogue output range |
+/- 10...24 V
|
|
| analogue output resolution |
13 bits + sign
|
|
| LSB value |
1.25 mV analogue output
|
|
| output voltage |
24 V DC reflex output
24 V DC servo drive validation |
|
| output voltage limits |
19...30 V reflex output
5...30 V servo drive validation |
|
| nominal output current |
0.5 A reflex output
|
|
| maximum output current |
1.5 mA analogue output
200 mA servo drive validation output 625 mA reflex output |
|
| minimum load |
1 mA 1 V
|
|
| voltage drop |
< 1 V at state on reflex output
|
|
| leakage current |
< 0.3 mA reflex output
|
|
| switching time |
< 5 ms for servo drive validation
< 500 µs for reflex output |
|
| output compatibility |
Positive logic DC inputs (resistance <= 15 kOhm) reflex
|
|
| short-circuit protection |
Current limiter reflex output
Thermal tripping reflex output |
|
| output overload protection |
Current limiter reflex output
Thermal tripping reflex output |
|
| output overvoltage protection |
Zener diode between outputs and 24 DC reflex output
|
|
| reverse polarity protection |
Reverse diode on supply reflex output
|
|
| local signalling |
4 LEDs green axis diagnostics available
1 LED green module operating (RUN) 1 LED red external fault (I/O) 1 LED red internal fault, module failure (ERR) |
|
| electrical connection |
1 connector HE-10 20 pins for servo drive ctrl inputs + for ext
power supply of servo drive inputs/outputs
1 connector SUB-D 9 for an analogue output (speed reference) 3 connectors HE-10 20 pins for aux inputs, reflex output, for external sensor and preactuator power supply 4 connectors SUB-D 15 for an incremental or absolute encoder |
|
| current consumption |
1500 mA 5 V DC
30 mA 24 V DC 22...40 mA 24 V DC on 10/30 V absolute encoder module |
|
| module format |
Double
|
|
| product weight |
0.61 kg
|
| protective treatment |
Conformal coating Humiseal 1A33
TC |
|
|---|---|---|
| ambient air temperature for operation |
0...60 °C
|
|
| ambient air temperature for storage |
-25...70 °C
|
|
| relative humidity |
5...95 % without condensation
|
|
| operating altitude |
<= 2000 m
|
