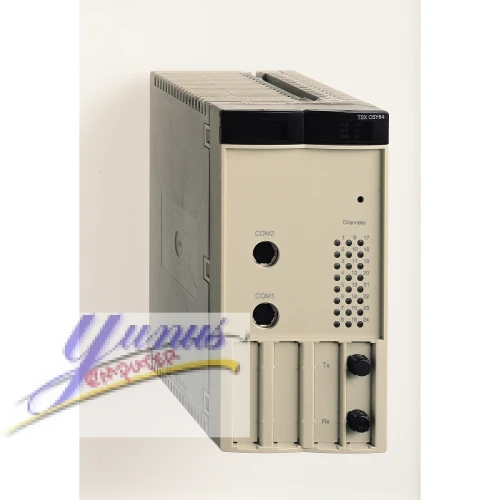

Schneider TSXCSY164 Multi-Axis Control Module - For SERCOS Digital Servo Drives - 1800 mA at 5V DC
The Schneider TSXCSY164 Multi-Axis Control Module is an advanced solution engineered for precision and efficiency in complex motion control applications. Designed specifically for integration with SERCOS digital servo drives, this module enables seamless, high-performance multi-axis control, making it ideal for industries where precision and synchronization are critical.
Key Features:
High-Precision Multi-Axis Control: The TSXCSY164 supports precise control of multiple axes, ensuring synchronized motion and accurate positioning in complex automation tasks. This makes it an excellent choice for industries such as manufacturing, robotics, and automated assembly lines.
SERCOS Interface: Leveraging the SERCOS (Serial Real-time Communication System) interface, this module guarantees real-time communication with digital servo drives. The deterministic nature of SERCOS ensures that commands and data are transmitted with minimal latency, maintaining the highest levels of performance and reliability.
Robust Power Supply: The module operates efficiently at a current consumption of 1800 mA at 5V DC, delivering consistent and reliable power to connected servo drives. This robust power supply ensures that the module can handle demanding applications without compromising performance.
Scalability and Flexibility: The TSXCSY164 is designed with scalability in mind, allowing it to be integrated into a wide range of automation systems, from small-scale operations to large, complex networks. Its flexibility makes it a versatile component in both new installations and retrofits.
Compact and Durable Design: Built with industrial-grade components, the TSXCSY164 is designed to withstand harsh operating environments. Its compact form factor allows for easy installation, even in space-constrained control cabinets.
Applications:
The Schneider TSXCSY164 Multi-Axis Control Module is particularly well-suited for applications requiring precise motion control and real-time communication, including:
- CNC machines
- Robotics and automated guided vehicles (AGVs)
- Packaging and material handling systems
- Semiconductor manufacturing equipment
- Printing and textile machines
Why Choose Schneider TSXCSY164?
Choosing the TSXCSY164 means investing in a solution that offers unparalleled control, reliability, and efficiency. With Schneider Electric's commitment to innovation and quality, this multi-axis control module stands out as a top choice for engineers and automation professionals looking to enhance their system's performance.
Enhance Your Automation System
Upgrade your automation capabilities with the Schneider TSXCSY164 Multi-Axis Control Module. Whether you're designing a new system or optimizing an existing one, this module delivers the precision and reliability you need to achieve your operational goals.
range of product |
Modicon Premium Automation platform
|
|
---|---|---|
product or component type |
Multi axis control module
|
|
product specific application |
SERCOS digital servo drives
|
|
number of channels |
32
|
|
number of axis |
16 configurable
|
|
path function |
Following of auxiliary axes
Simple linear |
|
communication network type |
SERCOS 2
|
|
structure type |
Industrial conforming to EN 61491
|
set of axes |
4 coordinated
4 followers |
|
---|---|---|
cam profile |
7
|
|
topology |
Ring
|
|
transmission support medium |
Fiber optic cable
|
|
transmission rate |
4 Mbit/s
|
|
cycle time |
2 ms 8
2 ms 2 2 ms 4 3 ms 12 4 ms 16 |
|
maximum number of segment of SERCOS network |
9
|
|
optic fiber length |
<= 150 m glass
<= 38 m plastic |
|
length of segment |
100 m bus X
|
|
power dissipation in W |
9 W
|
|
local signalling |
1 LED green module operating (RUN)
1 LED red external fault (I/O) 1 LED red internal fault, module failure (ERR) 1 LED yellow flashing indicates data transmission and reception 1 LED yellow flashing module reinitializing (INI) 24 LEDs green channel diagnostic |
|
current consumption |
1800 mA 5 V DC
|
|
product weight |
0.52 kg
|
standards |
EN/IEC 61491
|
|
---|---|---|
IP degree of protection |
IP20
|
|
ambient air temperature for operation |
0...60 °C
|
|
relative humidity |
10...95 % without condensation
|
Schneider TSXCSY164 Multi-Axis Control Module - SERCOS Digital Servo Drives - 1800 mA at 5V DC
- Brand: Schneider
- Product Code: TSXCSY164
- Availability: 1000
Tags: Schneider TSXCSY164, Multi-Axis Control Module, SERCOS, Digital Servo Drives, 1800 mA, 5V DC, Motion Control, Industrial Automation
