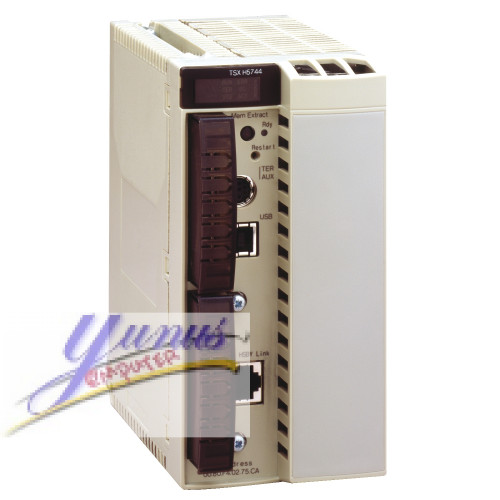

Schneider TSXH5724M Unity Hot Standby Processor
Overview:
The Schneider TSXH5724M Unity Hot Standby Processor is engineered for advanced automation control, offering unparalleled reliability and performance in demanding industrial environments. Designed for use with the Schneider Unity automation platform, this processor is ideal for applications requiring high availability and fault tolerance.
Key Features:
Hot Standby Redundancy: The TSXH5724M provides a seamless hot standby feature, ensuring continuous operation and system reliability. In the event of a failure, the backup processor takes over without interrupting the process, thus minimizing downtime and enhancing system resilience.
Flexible Rack Configurations: This processor supports a 1-rack configuration with options for 6, 8, or 12 slots. This flexibility allows for scalable system design and easy integration into existing setups, accommodating various application requirements.
Dual Communication Modules: Equipped with two communication modules, the TSXH5724M enhances connectivity and data exchange across the network. This feature supports multiple communication protocols, ensuring robust and versatile system integration.
Enhanced Performance: With advanced processing capabilities, the TSXH5724M delivers high-speed execution and precise control over complex automation tasks. Its performance is optimized for demanding applications, providing reliable operation in critical processes.
Unity Compatibility: Fully compatible with the Schneider Unity programming environment, the TSXH5724M integrates seamlessly with other Unity components. This ensures consistent programming and configuration, simplifying system setup and maintenance.
Applications:
Industrial Automation: Ideal for critical industrial automation systems where uninterrupted operation is essential. The hot standby feature provides enhanced reliability for manufacturing processes, production lines, and other automation tasks.
Process Control: Suitable for process control applications requiring high availability and minimal downtime. The processor’s advanced features support complex control strategies and ensure consistent process performance.
Complex Systems Integration: The TSXH5724M is well-suited for large-scale automation projects needing flexible rack configurations and robust communication capabilities. Its dual communication modules facilitate seamless integration with diverse system components.
Technical Specifications:
- Processor Type: Hot Standby Processor
- Rack Configuration: 1 Rack (6/8/12 Slots)
- Communication Modules: 2
- Programming Environment: Schneider Unity
Benefits:
- Increased System Uptime: Hot standby functionality minimizes the risk of system downtime, enhancing operational efficiency.
- Scalable Design: Flexible rack options support a range of automation needs, from small to large-scale applications.
- Enhanced Connectivity: Dual communication modules provide robust data exchange and integration capabilities.
Why Choose Schneider TSXH5724M?
The Schneider TSXH5724M Unity Hot Standby Processor stands out for its exceptional reliability, flexible configuration, and advanced performance features. It is the ideal choice for industries that demand high availability and fault-tolerant automation systems.
| range of product |
Modicon Premium Automation platform
|
|
|---|---|---|
| product or component type |
Unity Hot Standby processor
|
|
| software designation |
Unity Pro
|
| number of racks |
1 6/8/12 slots
|
|
|---|---|---|
| number of slots |
12
8 6 |
|
| discrete I/O processor capacity |
1024 I/O
|
|
| analogue I/O processor capacity |
80 I/O
|
|
| number of application specific channel |
<= 24
|
|
| number of process control channel |
<= 10 up to 30 simple loops
|
|
| integrated connection type |
Ethernet TCP/IP RJ45
USB port USB type A 12 Mbit/s Non isolated serial link female mini DIN RS485 19.2 kbit/s |
|
| port Ethernet |
10BASE-T/100BASE-TX
|
|
| communication module processor capacity |
2
|
|
| memory description |
Internal RAM (with PCMCIA card) 192 kB data
Internal RAM (with PCMCIA card) 768 kB program Internal RAM (without PCMCIA card) 192 kB program and data PCMCIA card 16384 kB additional data storage |
|
| maximum size of object areas |
192 kB data exchanged via CPU Sync link
32464 %MWi internal words located internal data 32760 %KWi constant words located internal data 8056 %Mi located internal bits Unlimited (DFB and EFB function blocks) unlocated internal data Unlimited (elementary and derived data) unlocated internal data |
|
| application structure |
1 master task
|
|
| execution time per instruction |
0.039...0.057 µs Boolean without PCMCIA card
0.048...0.057 µs Boolean with PCMCIA card 0.054...0.073 µs word or fixed-point arithmetic with PCMCIA card 0.054...0.073 µs word or fixed-point arithmetic without PCMCIA card 0.055...0.063 µs floating points with PCMCIA card 0.055...0.063 µs floating points without PCMCIA card |
|
| number of instructions per ms |
11.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA
card
11.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 15.75 Kinst/ms 100 % Boolean with PCMCIA card 15.75 Kinst/ms 100 % Boolean without PCMCIA card |
|
| system overhead |
1 ms master task
|
|
| marking |
CE
|
|
| local signalling |
1 LED green Ethernet TCP/IP port ready (RUN)
1 LED green processor running (RUN) 1 LED red collision detection (COL) 1 LED red Ethernet TCP/IP port fault (ERR) 1 LED red I/O module or configuration fault (I/O) 1 LED red processor or system fault (ERR) 1 LED yellow activity on TER or AUX terminal port (TER) 1 LED yellow Ethernet link diagnostics (STS) 1 LED yellow reception activity (RX) 1 LED yellow transmission activity (TX) |
|
| current consumption |
1880 mA 5 V DC
|
|
| module format |
Double
|
|
| product weight |
0.56 kg
|
| standards |
89/336/EEC
CSA C22.2 No 142 CSA C22.2 No 213 Class I Division 2 Group B CSA C22.2 No 213 Class I Division 2 Group D 92/31/EEC CSA C22.2 No 213 Class I Division 2 Group C UL 508 CSA C22.2 No 213 Class I Division 2 Group A IEC 61131-2 93/68/EEC 73/23/EEC |
|
|---|---|---|
| product certifications |
DNV
ABS LR BV RINA RMRS GL |
|
| ambient air temperature for operation |
0...60 °C
|
|
| ambient air temperature for storage |
-25...70 °C
|
|
| relative humidity |
10...95 % without condensation for operation
5...95 % without condensation for storage |
|
| operating altitude |
0...2000 m
|
|
| protective treatment |
TC
|
|
| IP degree of protection |
IP20
|
|
| pollution degree |
2
|
Schneider TSXH5724M Unity Hot Standby Processor – 1 Rack (6/8/12 Slots) with Dual Communication Modules
- Brand: Schneider
- Product Code: TSXH5724M
- Availability: 1000
Tags: Schneider TSXH5724M, Unity Hot Standby Processor, 1 Rack, 6 Slots, 8 Slots, 12 Slots, Dual Communication Modules, Industrial Automation, High Reliability, Fault Tolerant, Process Control, Automation Processor
