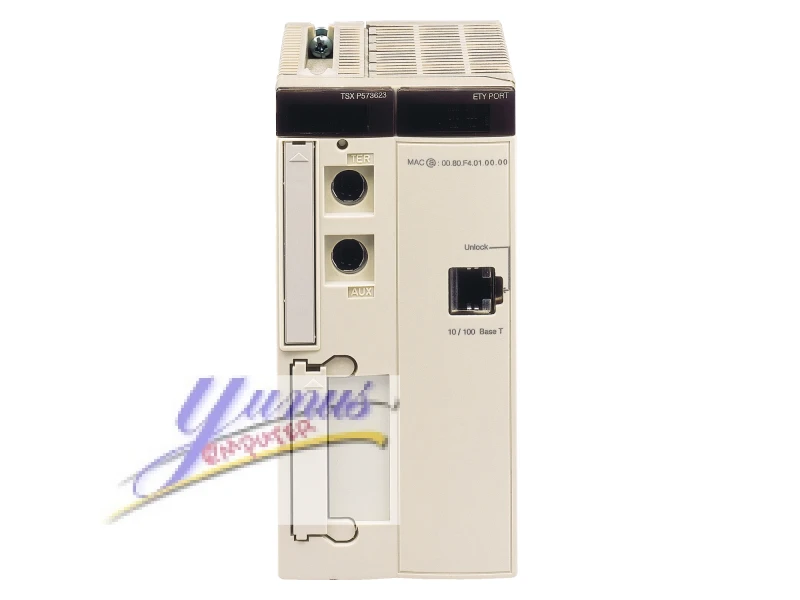

Schneider TSXP573623AMC Double-format PL7 Processor - Transparent Ready - 1360 mA
Overview
The Schneider TSXP573623AMC is an advanced Double-format PL7 processor designed for high-performance and reliability in complex industrial automation systems. This robust processor is engineered to handle demanding control tasks with exceptional precision, offering a seamless integration into Schneider Electric’s programmable logic controller (PLC) ecosystems.
Key Features
- Double-format Compatibility: The TSXP573623AMC supports both traditional and modern formats, ensuring versatility and adaptability in various applications.
- Transparent Ready Technology: Equipped with Transparent Ready functionality, this processor facilitates real-time diagnostics and communication, enabling rapid troubleshooting and system optimization without interrupting operation.
- Powerful Performance: With a current rating of 1360 mA, this processor delivers reliable power management and efficient performance, even under high-load conditions.
- Enhanced Processing Speed: Designed to handle complex algorithms and extensive data processing with high speed, this processor ensures timely and accurate control operations.
- Robust Reliability: Engineered for durability and resilience, the TSXP573623AMC is built to withstand harsh industrial environments, making it ideal for critical and continuous operation.
Technical Specifications
- Current Rating: 1360 mA
- Processor Type: Double-format PL7
- Compatibility: Transparent Ready
- Form Factor: Compact design for easy integration into existing control panels
- Operating Temperature Range: Designed to operate reliably across a broad temperature range, suitable for various industrial environments
- Connectivity: Supports standard communication protocols for seamless integration with Schneider Electric’s automation systems
Applications
The Schneider TSXP573623AMC processor is ideal for applications requiring robust control and monitoring, including:
- Manufacturing automation
- Process control
- System integration and diagnostics
- High-demand industrial processes
Why Choose Schneider TSXP573623AMC?
Opt for the Schneider TSXP573623AMC for superior processing power, flexibility, and reliability in your automation systems. With its Transparent Ready technology and powerful performance, this processor is designed to meet the rigorous demands of modern industrial applications, ensuring optimal efficiency and uptime.
Order Your Schneider TSXP573623AMC Today
Enhance your automation capabilities with the Schneider TSXP573623AMC Double-format PL7 processor. Contact us to learn more about how this advanced processor can be integrated into your system or to place your order.
range of product |
Modicon Premium Automation platform
|
|
---|---|---|
product or component type |
Double-format PL7 processor
|
|
software designation |
PL7 Junior/Pro
|
concept |
Transparent Ready
|
|
---|---|---|
number of racks |
16 4/6/8 slots
8 12 slots |
|
number of slots |
128
64 96 |
|
discrete I/O processor capacity |
1024 I/O
|
|
analogue I/O processor capacity |
128 I/O
|
|
number of application specific channel |
<= 32
|
|
number of process control channel |
<= 15 up to 45 simple loops
|
|
integrated connection type |
Ethernet TCP/IP RJ45 10/100 Mbit/s
Non isolated serial link 2 female mini DIN 19.2/115 kbit/s |
|
communication module processor capacity |
1 CANopen
2 network module 2 fieldbus modules (1 if CANopen used) 8 AS-Interface bus modules |
|
memory description |
Internal RAM (with PCMCIA card) 80 Kwords data
Internal RAM (without PCMCIA card) 64 Kwords program and data PCMCIA card 2688 Kwords additional data storage PCMCIA card 384 Kwords program |
|
maximum size of object areas |
16384 %Mi located internal bits
30.5 %MWi internal words located internal data 32 %KWi constant words located internal data |
|
application structure |
1 fast task
1 master task 64 event tasks |
|
execution time per instruction |
0.12 µs Boolean without PCMCIA card
0.17 µs Boolean with PCMCIA card 0.17 µs word or fixed-point arithmetic without PCMCIA card 2.6 µs floating points with PCMCIA card 0.33 µs word or fixed-point arithmetic with PCMCIA card 2.5 µs floating points without PCMCIA card |
|
number of instructions per ms |
3.08 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA
card
4.49 Kinst/ms 100 % Boolean with PCMCIA card 4.7 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card 6.57 Kinst/ms 100 % Boolean without PCMCIA card |
|
system overhead |
0.29 ms fast task
1.15 ms master task |
|
marking |
CE
|
|
local signalling |
1 LED green Ethernet TCP/IP port ready (RUN)
1 LED green processor running (RUN) 1 LED red collision detection (COL) 1 LED red Ethernet TCP/IP port fault (ERR) 1 LED red I/O module or configuration fault (I/O) 1 LED red processor or system fault (ERR) 1 LED yellow activity on the terminal port (TER) 1 LED yellow Ethernet link diagnostics (STS) 1 LED yellow reception activity (RX) 1 LED yellow transmission activity (TX) |
|
current consumption |
1360 mA 5 V DC
|
|
module format |
Double
|
standards |
73/23/EEC
89/336/EEC 92/31/EEC 93/68/EEC CSA C22.2 No 142 IEC 61131-2 UL 508 CSA C22.2 No 213 Class I Division 2 Group A CSA C22.2 No 213 Class I Division 2 Group B CSA C22.2 No 213 Class I Division 2 Group C CSA C22.2 No 213 Class I Division 2 Group D |
|
---|---|---|
product certifications |
ABS
BV DNV GL LR RINA RMRS |
|
ambient air temperature for operation |
0...60 °C
|
|
ambient air temperature for storage |
-25...70 °C
|
|
relative humidity |
10...95 % without condensation for operation
5...95 % without condensation for storage |
|
operating altitude |
0...2000 m
|
|
protective treatment |
Conformal coating Humiseal 1A33
TC |
|
IP degree of protection |
IP20
|
|
pollution degree |
2
|
