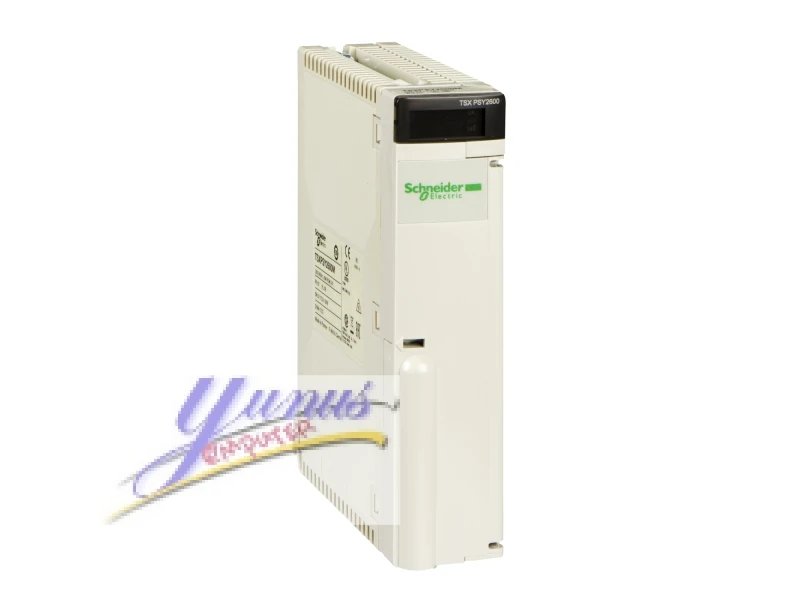

Schneider TSXPSY2600MC Power Supply Module – 100–240V AC, 300/500 mA, IP20
Overview:
Elevate your automation infrastructure with the Schneider TSXPSY2600MC Power Supply Module, a high-performance component designed to deliver reliable and stable power for industrial applications. With a wide input voltage range and robust protection features, this power supply module is an ideal choice for enhancing the efficiency and reliability of your control systems.
Key Features:
Wide Input Voltage Range: The TSXPSY2600MC supports an input voltage range of 100 to 240V AC, accommodating various power environments and ensuring consistent operation across different regions.
Flexible Current Ratings: This module offers dual current ratings of 300 mA and 500 mA, providing versatility to meet diverse power requirements and adapt to varying load conditions.
Compact and Durable Design: Designed with an IP20 protection rating, the TSXPSY2600MC ensures reliable operation in protected environments, safeguarding against solid object ingress and maintaining long-term performance.
High Efficiency and Reliability: Schneider's commitment to quality engineering guarantees a high-efficiency power supply module that minimizes energy loss and enhances the overall reliability of your control systems.
Ease of Integration: The compact form factor and straightforward installation process make the TSXPSY2600MC a seamless fit for various industrial automation setups, reducing installation time and complexity.
Technical Specifications:
- Model: Schneider TSXPSY2600MC
- Input Voltage: 100–240V AC
- Output Current: 300 mA (standard), 500 mA (peak)
- Protection Rating: IP20
- Design: Compact and robust, suitable for industrial environments
Applications:
The Schneider TSXPSY2600MC Power Supply Module is ideal for use in industrial automation systems, control panels, and other critical applications where reliable power supply is essential. Its versatility and robust design make it suitable for a wide range of automation and control tasks.
Why Choose Schneider TSXPSY2600MC?
Opt for the Schneider TSXPSY2600MC to ensure your automation systems operate with maximum efficiency and reliability. With its advanced features and high-quality engineering, this power supply module provides a dependable solution for all your power supply needs, backed by Schneider's renowned industry expertise.
Optimize Your System with Schneider TSXPSY2600MC
Enhance your industrial control setup today with the Schneider TSXPSY2600MC Power Supply Module. Experience the benefits of superior performance, flexibility, and reliability.
| range of product |
Modicon Premium Automation platform
|
|
|---|---|---|
| product or component type |
Power supply module
|
| primary voltage |
100...240 V AC 85...264 V
|
|
|---|---|---|
| network frequency |
50/60 Hz
|
|
| network frequency limits |
47...63 Hz
|
|
| input current |
300 mA 240 V
500 mA 100 V |
|
| inrush current |
37 A 100 V
75 A 240 V |
|
| I²t on activation |
0.63 A².s 100 V
2.6 A².s 240 V |
|
| It on activation |
0.034 A.s 100 V
0.067 A.s 240 V |
|
| protection type |
Internal fuse 4 A 5 x 20 mm time-delayed primary circuit
Overload protection secondary circuit Overvoltage protection secondary circuit Short-circuit protection secondary circuit |
|
| total useful secondary power |
26 W
|
|
| secondary power |
15 W 24 V DC
25 W 5 V DC |
|
| current at secondary voltage |
0.5 A 24 V DC sensor power supply
0.6 A 24 V DC relay power supply 5 A 5 V DC |
|
| insulation resistance |
>= 100 MOhm primary/ground
>= 100 MOhm primary/secondary |
|
| marking |
CE
|
|
| local signalling |
1 LED green presence of sensor voltage (24V)
1 LED green presence of voltages (OK) 1 LED red battery fault (BAT) |
|
| module format |
Standard
|
|
| product weight |
0.51 kg
|
| immunity to microbreaks |
<= 10 ms
|
|
|---|---|---|
| dielectric strength |
2000 V primary/earth
2000 V primary/secondary |
|
| standards |
73/23/EEC
89/336/EEC 92/31/EEC 93/68/EEC CSA C22.2 No 142 IEC 61131-2 UL 508 CSA C22.2 No 213 Class I Division 2 Group A CSA C22.2 No 213 Class I Division 2 Group B CSA C22.2 No 213 Class I Division 2 Group C CSA C22.2 No 213 Class I Division 2 Group D |
|
| product certifications |
ABS
BV DNV GL LR RINA RMRS |
|
| ambient air temperature for operation |
0...60 °C
|
|
| ambient air temperature for storage |
-25...70 °C
|
|
| relative humidity |
10...95 % without condensation for operation
5...95 % without condensation for storage |
|
| operating altitude |
0...2000 m
|
|
| protective treatment |
Conformal coating Humiseal 1A33
TC |
|
| IP degree of protection |
IP20
|
|
| pollution degree |
2
|
