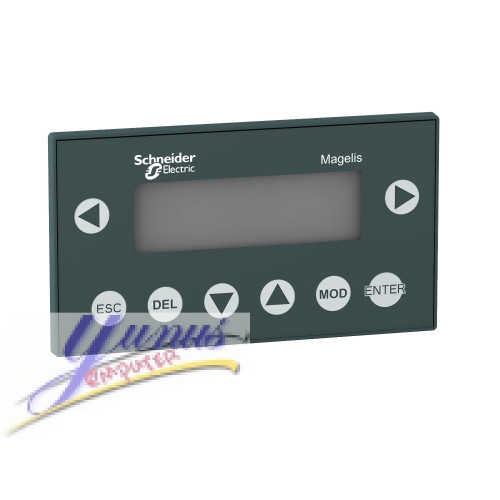

Schneider XBTN410 Small Panel with Keypad - Matrix Screen - Green - 24V
Elevate your control system with the Schneider XBTN410 Small Panel, a premier solution designed to offer both versatility and precision in industrial automation. This compact yet robust panel integrates seamlessly into various applications, delivering exceptional performance and user interface capabilities.
Product Overview: The Schneider XBTN410 is a high-quality small panel featuring a user-friendly keypad and a matrix screen, all housed in a durable green enclosure. Operating at 24V, this panel is engineered for reliability and efficiency, making it an ideal choice for industrial environments where space and functionality are critical.
Key Features:
Matrix Screen Display: The XBTN410 is equipped with a matrix screen that ensures clear, readable outputs and intuitive interaction. The high-resolution display enhances visibility and provides real-time feedback, essential for accurate monitoring and control.
Integrated Keypad: The built-in keypad offers a tactile and responsive interface for quick data entry and command execution. Its ergonomic design ensures ease of use, reducing operator error and increasing productivity.
Compact Design: With its small form factor, the XBTN410 is perfect for installations with limited space. Its compact size does not compromise functionality, allowing for efficient space utilization without sacrificing performance.
Green Enclosure: The panel is housed in a robust green enclosure that not only enhances visibility but also provides protection against environmental factors. The durable construction ensures longevity and reliability in demanding industrial settings.
24V Operation: Designed to operate at 24V, this panel is compatible with a wide range of automation systems. The low voltage operation ensures energy efficiency and safe operation, aligning with modern industrial standards.
Versatile Application: Suitable for various automation tasks, the Schneider XBTN410 is adaptable to different industrial environments, including manufacturing, process control, and facility management.
Technical Specifications:
- Model: XBTN410
- Display Type: Matrix Screen
- Keypad: Integrated, tactile
- Enclosure Color: Green
- Operating Voltage: 24V DC
- Dimensions: [Insert Dimensions Here]
- Weight: [Insert Weight Here]
- Operating Temperature: [Insert Temperature Range Here]
Applications:
- Industrial Automation: Ideal for control panels and machinery interfaces where space is limited.
- Manufacturing Systems: Provides reliable control and monitoring for various manufacturing processes.
- Facility Management: Useful in building management systems for real-time status updates and control.
Why Choose Schneider XBTN410?
The Schneider XBTN410 Small Panel offers a combination of advanced features and user-centric design, making it a top choice for professionals seeking a reliable and efficient control solution. Its matrix screen and integrated keypad enhance operational efficiency, while the compact and durable design ensures it meets the demands of modern industrial applications.
Optimize Your Automation Systems with Schneider XBTN410:
Experience superior control and performance with the Schneider XBTN410 Small Panel. Its blend of functionality, compactness, and durability ensures it stands out in the competitive landscape of industrial control solutions. Order now to elevate your automation processes and achieve unparalleled operational excellence.
Schneider XBTN410 Small panel with keypad - with matrix screen - green - 24V
range of product |
Magelis XBTN
|
|
---|---|---|
product or component type |
Small panel with keypad
|
|
display resolution |
122 x 32 pixels
|
|
software type |
Configuration software
|
|
software designation |
Vijeo Designer Lite
|
|
operating system |
Magelis
|
display type |
Extra-bright matrix backlit LCD
|
|
---|---|---|
display colour |
Green
|
|
character font |
ASCII
Chinese (simplified Chinese) Cyrillic Greek Katakana |
|
[Us] rated supply voltage |
24 V DC
|
|
supply |
External source
|
|
supply voltage limits |
18...30 V
|
|
residual ripple |
1200 mV
|
|
power consumption in W |
<= 5 W
|
|
number of key |
8
|
|
number of fixed keys |
4
|
|
number of customisable keys |
4
|
|
number of pages |
200 application pages
256 alarm pages |
|
memory type |
Flash
|
|
memory capacity |
512 kB
|
|
integrated connection type |
Power supply: removable screw terminal block
Serial link: female SUB-D 25, asynchronous transmission mode (RS232C/RS485), multidrop topology |
|
realtime clock |
Access to the PLC real-time clock
|
|
product mounting |
Flush mounting
|
|
fixing mode |
By 2 spring clips
|
|
display material |
Polyester
|
|
front material |
PPT
|
|
keypad material |
Polyester
|
|
marking |
CE
|
|
width |
132 mm
|
|
height |
74 mm
|
|
depth |
43 mm
|
|
cut-out dimensions |
119.4 (+/- 0.5) x 63 (+/- 0.4) mm
|
|
product weight |
0.38 kg
|
messages display capacity |
1 line of 5 characters minimum
4 lines of 20 characters maximum |
|
---|---|---|
downloadable protocols |
Modbus
Third party protocols Uni-TE |
|
standards |
IEC 60068-2-27
IEC 60068-2-6 IEC 61131-2 UL 508 CSA C22.2 No 14 |
|
product certifications |
ATEX zone 2/22
CSA Class 1 Division 2 UL Class 1 Division 2 UL 1604 |
|
ambient air temperature for operation |
0...55 °C
|
|
ambient air temperature for storage |
-20...60 °C
|
|
relative humidity |
0...85 % without condensation
|
|
IP degree of protection |
IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529 |
|
NEMA degree of protection |
NEMA 4X front panel (outdoor use)
|
|
shock resistance |
15 gn for 11 ms
|
|
vibration resistance |
+/- 3.5 mm (f = 2...8.45 Hz)
1 gn (f = 8.45...150 Hz) |
Schneider XBTN410 Compact Panel with Keypad, Matrix Screen, Green, 24V
- Brand: Schneider
- Product Code: XBTN410
- Availability: 1000
